ERZ-LNA-0200-3300-30-4
ERZ-LNA-0200-3300-30-4
Erzia

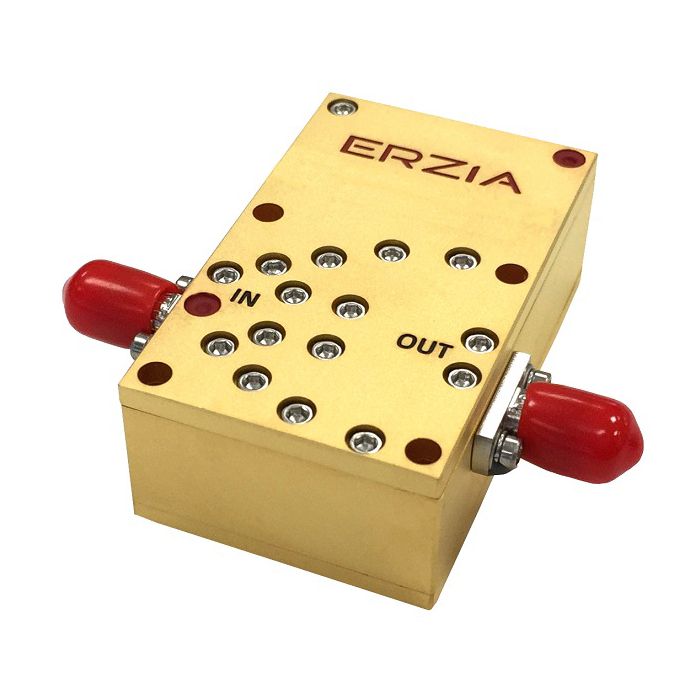

Wideband Low Noise Amplifier
The ERZ-LNA-0200-3300-30-4 is a low noise amplifier covering from S band to Ka Band and being able to provide low noise figure within a wide frequency range and a gain of 30dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Applications |
|
| Frequency Start (GHz) | 2.0000 |
| Frequency Stop (GHz) | 33.0000 |
| Power Supply (V) | 12± 3V |
| Current (mA) | 250 |
| Storage Temperature | -55°C to 125°C |
| Band | Wideband |
| Output Power (dBm) | 16 |
| Gain (dB) | 30 |
| Operating Temperature | -35°C to 70°C |
| Connectors | 2.92 mm Female |
| Product Type | Low Noise Amplifier |
| Dimensions | 30 x 50 x 17.5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
