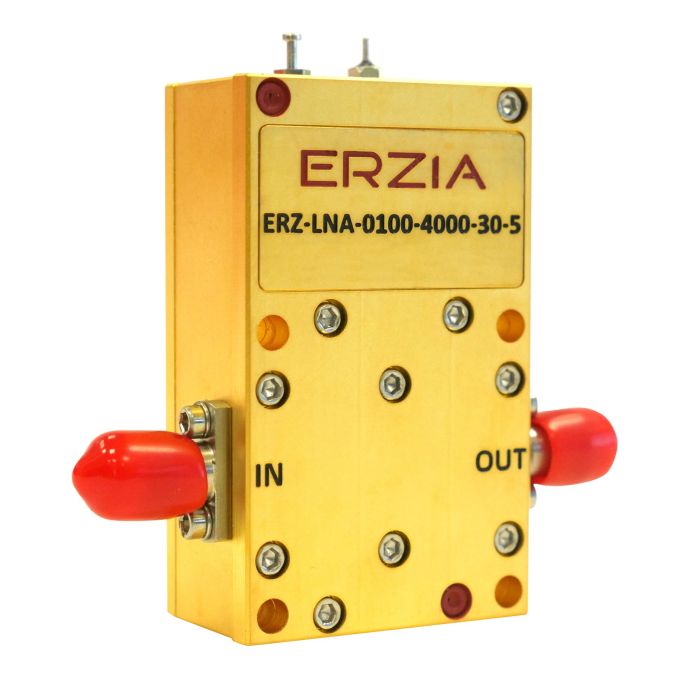

ERZ-LNA-0100-4000-30-5
ERZ-LNA-0100-4000-30-5
Erzia
Wideband Low Noise Amplifier
The ERZ-LNA-0100-4000-30-5 is a low noise amplifier providing a gain of 30 dB with a noise figure of 5 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Applications |
|
| Frequency Start (GHz) | 1.0000 |
| Frequency Stop (GHz) | 40.0000 |
| Power Supply (V) | 12± 3V |
| Current (mA) | 250 |
| Storage Temperature | -55°C to 125°C |
| Band | Wideband |
| Output Power (dBm) | 16 |
| Gain (dB) | 30 |
| Operating Temperature | -45°C to 85°C |
| Connectors | 2.92 mm Female |
| Product Type | Low Noise Amplifier |
| Dimensions | 30 x 50 x 17.5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
