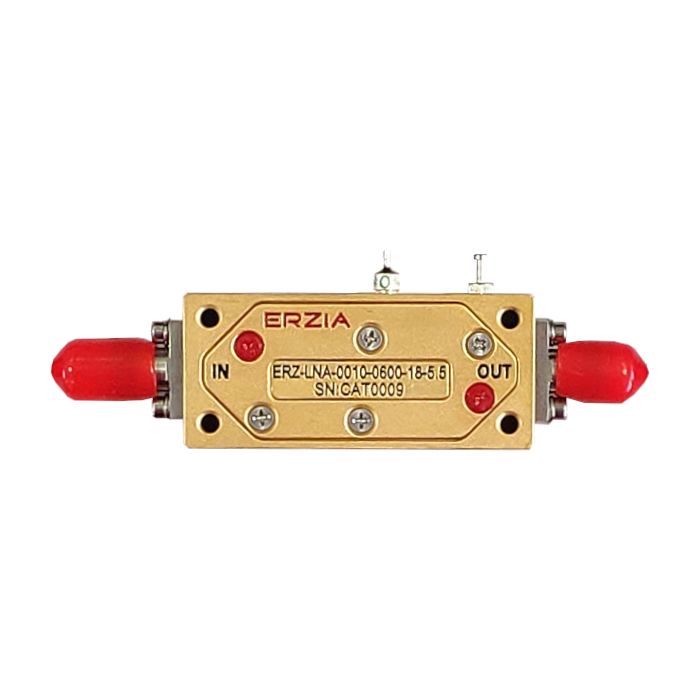

Erzia

Wideband Low Noise Amplifier

The ERZ-LNA-0010-0600-18-5.5 is a low noise amplifier providing a gain up to 20 dB with a noise figure of 5.5 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Applications
  • Industrial
  • Laboratory
  • Satcom
  • Telecom
  • Space
  • Aerospace
  • Military
Frequency Start (GHz) 0.1
Frequency Stop (GHz) 6.0000
Power Supply (V) 15± 3V
Current (mA) 600
Storage Temperature -55°C to 125°C
Band Wideband
Output Power (dBm) 27.5
Gain (dB) 20
Operating Temperature -45°C to 85°C
Connectors SMA Female
Product Type Low Noise Amplifier
Dimensions 40 x 18.5 x 10 mm
More Information
Attribute Value
Data Sheet Click here to view
