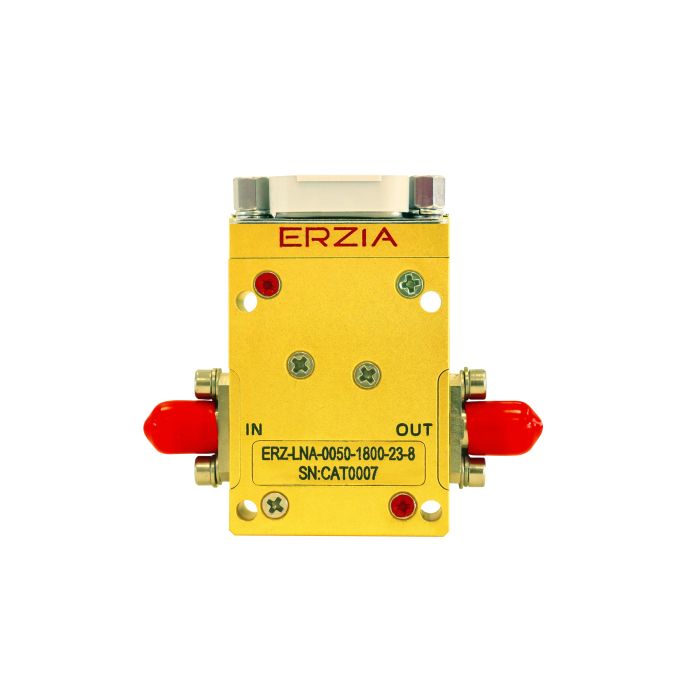

ERZ-LNA-0050-1800-23-8
ERZ-LNA-0050-1800-23-8
Erzia
Wideband Low Noise Amplifier
The ERZ-LNA-0050-1800-23-8 is a Wideband low noise amplifier with vairable gain and a noise figure of 4 dB. The compact size and modularity makes it ideal for a wide range of applications. It comes with an internal 25dB attenuator with 0.5 dB step.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Applications |
|
| Frequency Start (GHz) | 0.5 |
| Frequency Stop (GHz) | 18.0000 |
| Power Supply (V) | 12± 3V |
| Current (mA) | 166 |
| Storage Temperature | -55°C to 125°C |
| Band | Wideband |
| Output Power (dBm) | 16 |
| Gain (dB) | 23 |
| Operating Temperature | -45°C to 85°C |
| Connectors | SMA Female |
| Product Type | Low Noise Amplifier |
| Dimensions | 31 x 45 x 13 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
