ERZ-LNA-0700-1400-16-2
ERZ-LNA-0700-1400-16-2
Erzia

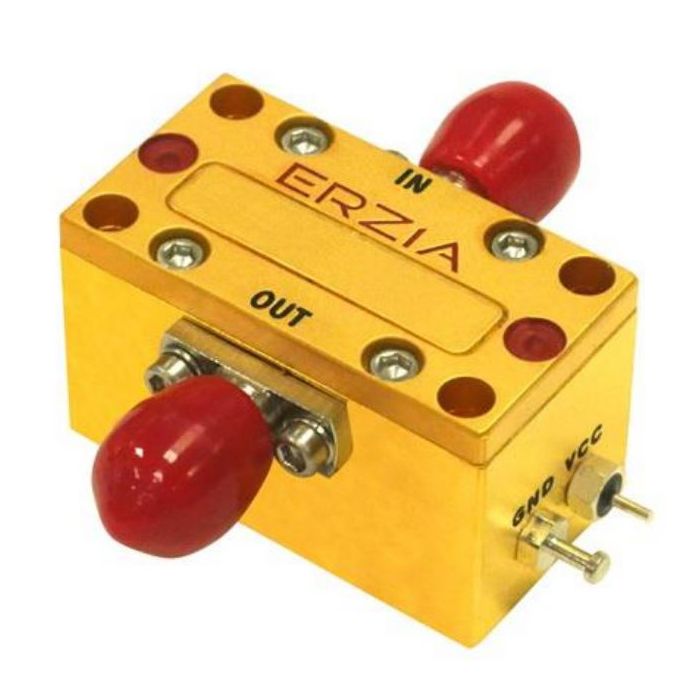

X Band Low Band Amplifier
The ERZ-LNA-0700-1400-16-2 is a low noise amplifier that provides a Noise Figure of 2 dB with a Gain higher of 19 dB.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Applications |
|
| Frequency Start (GHz) | 7.0000 |
| Frequency Stop (GHz) | 14.0000 |
| Power Supply (V) | 6± 1V |
| Current (mA) | 66 |
| Storage Temperature | -55°C to 125°C |
| Band | X Band |
| Output Power (dBm) | 13 |
| Gain (dB) | 19 |
| Operating Temperature | -45°C to 85°C |
| Connectors | SMA Female |
| Product Type | Low Noise Amplifier |
| Dimensions | 16 x 30 x 17.5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
