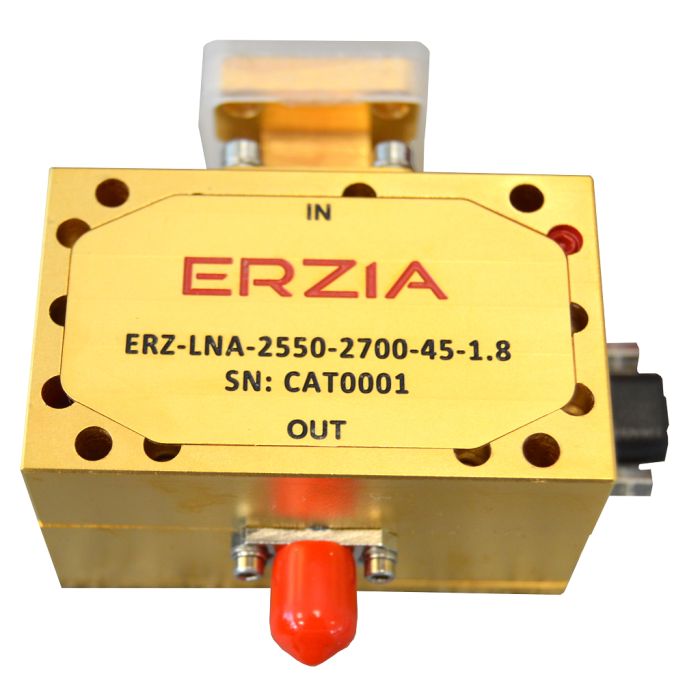

ERZ-LNA-2550-2700-45-1.8
ERZ-LNA-2550-2700-45-1.8
Erzia
K Band Low Noise Amplifier
The ERZ-LNA-2550-2700-45-1.8 is a low noise amplifier providing a gain of 45 dB with a noise figure of 1.8 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Applications |
|
| Frequency Start (GHz) | 25.5 |
| Frequency Stop (GHz) | 27.0000 |
| Power Supply (V) | 15± 3V |
| Current (mA) | 83 |
| Storage Temperature | -55°C to 125°C |
| Band | K Band |
| Output Power (dBm) | 12 |
| Gain (dB) | 45 |
| Operating Temperature | -40°C to 85°C |
| Connectors |
IN: WR34
OUT: 2.92 mm Female |
| Product Type | Low Noise Amplifier |
| Dimensions | 32 x 52 x 29.5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
