Erzia

Wideband Low Noise Amplifier

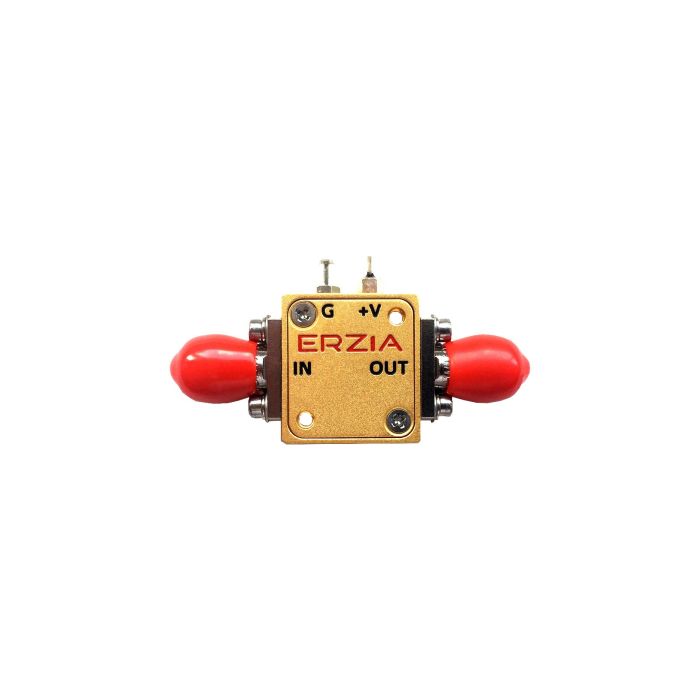

The ERZ-LNA-0550-1800-40-4 is a low noise amplifier providing a gain of 40 dB with a noise figure of 4 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Applications
  • Industrial
  • Laboratory
  • Satcom
  • Telecom
  • Space
  • Aerospace
  • Military
Frequency Start (GHz) 5.5
Frequency Stop (GHz) 18.0000
Power Supply (V) 12± 3V
Current (mA) 41.6
Storage Temperature -55°C to 125°C
Band Wideband
Output Power (dBm) 14
Gain (dB) 40
Operating Temperature -54°C to 85°C
Connectors SMA Female
Product Type Low Noise Amplifier
Dimensions 16.3 x 18.9 x7.4 mm
