ERZ-LNA-0200-1800-23-2.5

ERZ-LNA-0200-1800-23-2.5

ERZ-LNA-0200-1800-23-2.5

Erzia

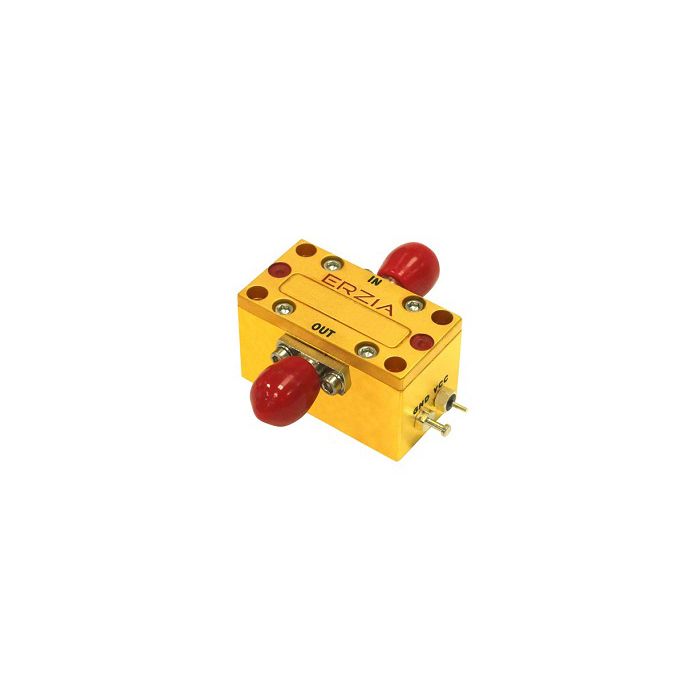

Wideband Low Noise Amplifier

The ERZ-LNA-0200-1800-23-2.5 is a low noise amplifier that provides a Noise Figure of 2.5 dB with a Gain of 22 dB.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Applications
  • Industrial
  • Laboratory
  • Satcom
  • Telecom
  • Space
  • Aerospace
  • Military
Frequency Start (GHz) 2.0000
Frequency Stop (GHz) 18.0000
Power Supply (V) 12± 3V
Current (mA) 250
Storage Temperature -55°C to 125°C
Band Wideband
Output Power (dBm) 15
Gain (dB) 22
Operating Temperature -45°C to 85°C
Connectors SMA Female
Product Type Low Noise Amplifier
Dimensions 16 x 30 x 17.5 mm
More Information
Attribute Value
Data Sheet Click here to view
