Erzia

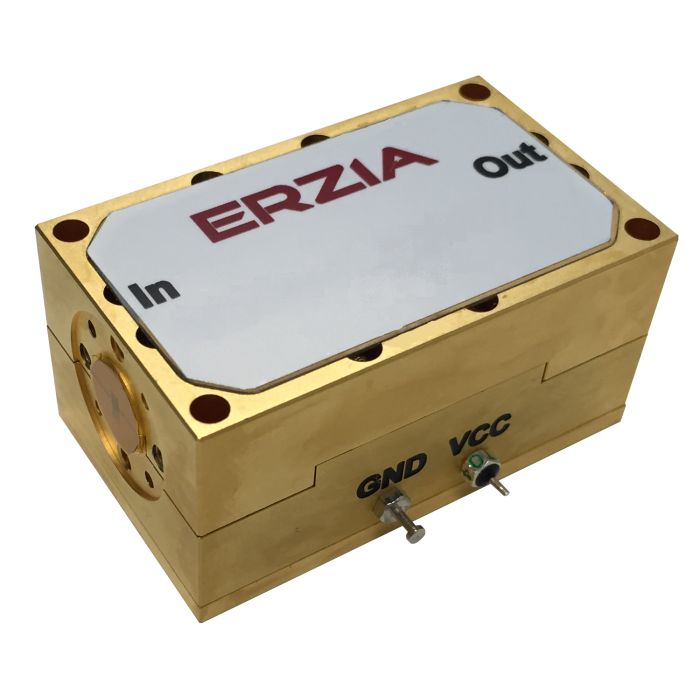

W Band Low Noise Amplifier
The ERZ-LNA-7500-11000-20-4 is a low noise amplifier providing a gain of 20 dB with a noise figure below 4.5 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Applications |
|
| Frequency Start (GHz) | 75.0000 |
| Frequency Stop (GHz) | 110.0000 |
| Power Supply (V) | 6± 1V |
| Current (mA) | 83 |
| Storage Temperature | -55°C to 125°C |
| Band | W Band |
| Output Power (dBm) | 0 |
| Gain (dB) | 20 |
| Operating Temperature | -40°C to 85°C |
| Connectors | WR10 |
| Product Type | Low Noise Amplifier |
| Dimensions | 38.1 x 27.9 x 19 mm |
