Erzia

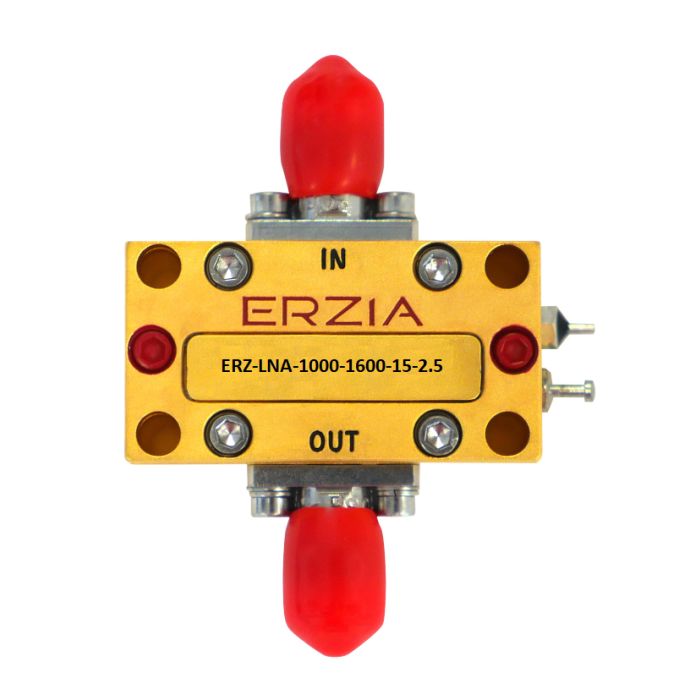

Ku Band Low Noise Amplifier

The ERZ-LNA-1000-1600-15-2.5 is a low noise amplifier that provides a Noise Figure of 2.5 dB with a Gain of 15 dB.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Applications
  • Industrial
  • Laboratory
  • Satcom
  • Telecom
  • Space
  • Aerospace
  • Military
Frequency Start (GHz) 10.0000
Frequency Stop (GHz) 16.0000
Power Supply (V) 12± 4V
Current (mA) 25
Storage Temperature -55°C to 125°C
Band Ku Band
Output Power (dBm) 13
Gain (dB) 17
Operating Temperature -40°C to 85°C
Connectors SMA Female
Product Type Low Noise Amplifier
Dimensions 16 x 30 x 17.5 mm
More Information
Attribute Value
Data Sheet Click here to view
