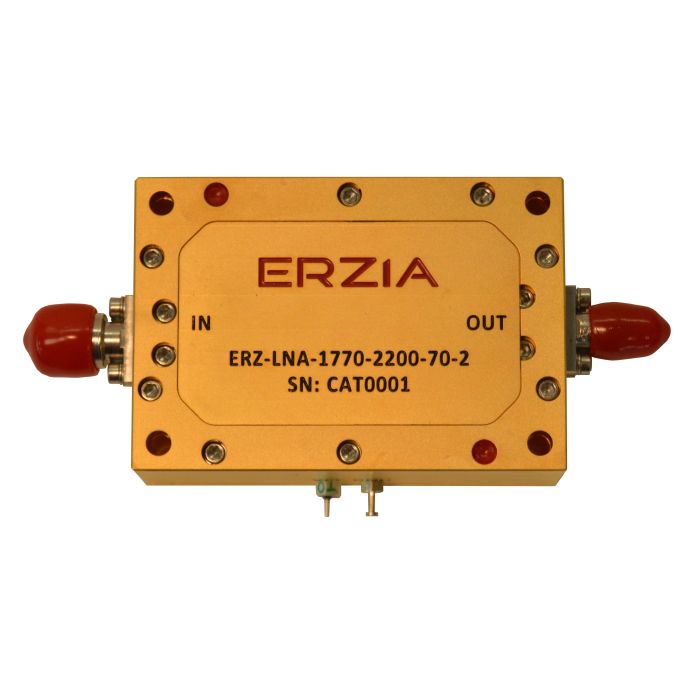

ERZ-LNA-1770-2200-70-2
ERZ-LNA-1770-2200-70-2
Erzia
Ka Band Low Noise Amplifier
The ERZ-LNA-1770-2200-70-2 is a K band low noise amplifier with a high gain value of 70 dB and a noise figure lower than 2 dB. This amplifier also includes an output isolator.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Applications |
|
| Frequency Start (GHz) | 17.7 |
| Frequency Stop (GHz) | 22 |
| Power Supply (V) | 18± 2V |
| Current (mA) | 166 |
| Storage Temperature | -45°C to 85°C |
| Band | Ka Band |
| Output Power (dBm) | 12 |
| Gain (dB) | 73 |
| Operating Temperature | -35°C to 70°C |
| Connectors |
IN: 2.92 mm Male OUT: 2.92 mm Female |
| Dimensions | 58.2 x 40 x 21.5 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
