Erzia

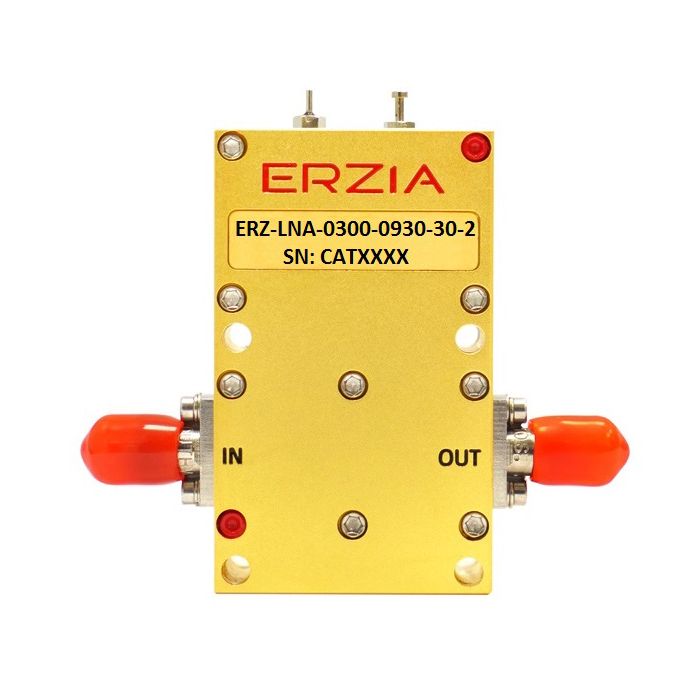

C Band Low Noise Amplifier

The ERZ-0300-0930-30-2 is a wideband low noise amplifier providing a low noise figure within a wide frequency range and a gain of 30 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Applications
  • Industrial
  • Laboratory
  • Satcom
  • Telecom
  • Space
  • Aerospace
  • Military
Frequency Start (GHz) 3.0000
Frequency Stop (GHz) 9.0000
Power Supply (V) 15
Current (mA) 74
Storage Temperature -55°C to 125°C
Band C Band
Output Power (dBm) 19
Gain (dB) 30
Operating Temperature -40°C to 85°C
Connectors SMA Female
Product Type Low Noise Amplifier
Dimensions 30 x 50 x 17.5 mm
More Information
Attribute Value
Data Sheet Click here to view
