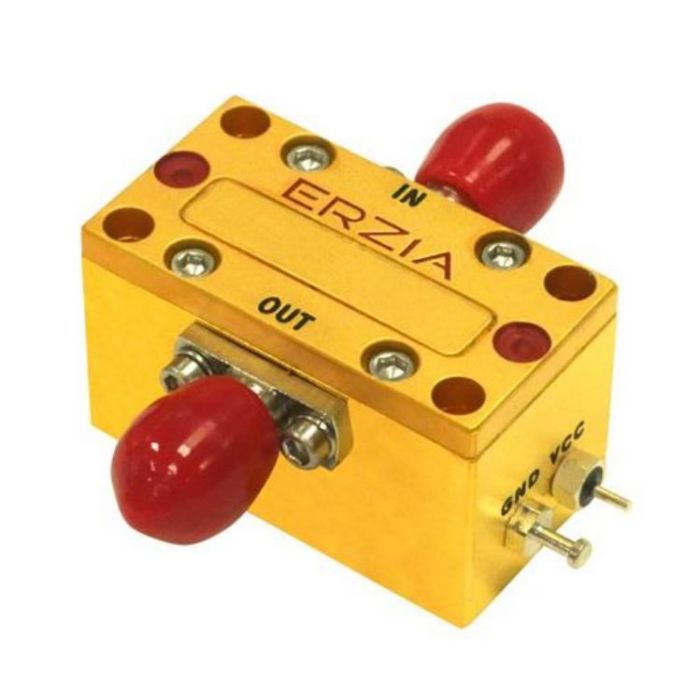

Erzia

Wideband Low Noise Amplifier

The ERZ-LNA-0100-3800-12-4 is a low noise amplifier providing a gain of 12 dB with a noise figure of 4 dB. The compact size and modularity makes it ideal for a wide range of applications.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Applications
  • Industrial
  • Laboratory
  • Satcom
  • Telecom
  • Space
  • Aerospace
  • Military
Frequency Start (GHz) 1.0000
Frequency Stop (GHz) 38.0000
Power Supply (V) 12± 3V
Current (mA) 50
Storage Temperature -55°C to 125°C
Band Wideband
Output Power (dBm) 10
Gain (dB) 12
Operating Temperature -45°C to 85°C
Connectors 2.92 mm Female
Product Type Low Noise Amplifier
Dimensions 16 x 30 x 17.5 mm
More Information
Attribute Value
Data Sheet Click here to view
