ERZ-LPF-0000-1000-1.5

ERZ-LPF-0000-1000-1.5

ERZ-LPF-0000-1000-1.5

Erzia

Low Pass Filter

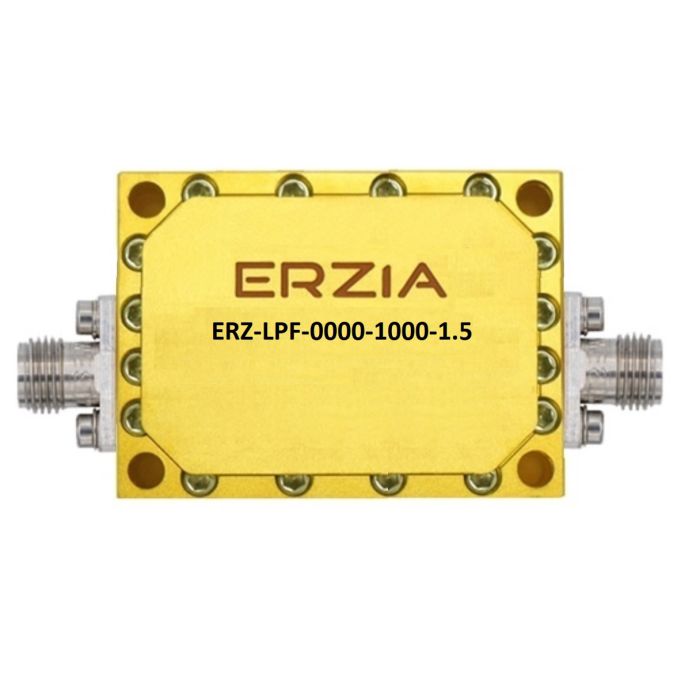

The ERZ-LPF-0000-1000-1.5 is a suspended substrate stripline low pass filter integrated in a compact, rugged and connectorised module allowing easy integration in a wide range of final applications.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Applications Industrial / Laboratory
Satcom / Telecom
Space / Aerospace / Military
Technology Suspended Substrate
Frequency Start (GHz) 0.0000
Frequency Stop (GHz) 10.0000
Insertion Loss (dB) 0.4
Return Loss (dB) 13.0000
Storage Temperature -55°C to 125°C
Maximum RF Input Power (dBm) 40.0000
Operating Temperature -45°C to 85°C
Connectors SMA Female
Product Type Suspended Substrate Filter
Dimensions 55 x 40 x 10 mm
More Information
Attribute Value
Data Sheet Click here to view
