FF-3PCL
FF-3PCL
ETS-Lindgren
4 GHz to 40 GHz - FF Series Filter Foam Absorber

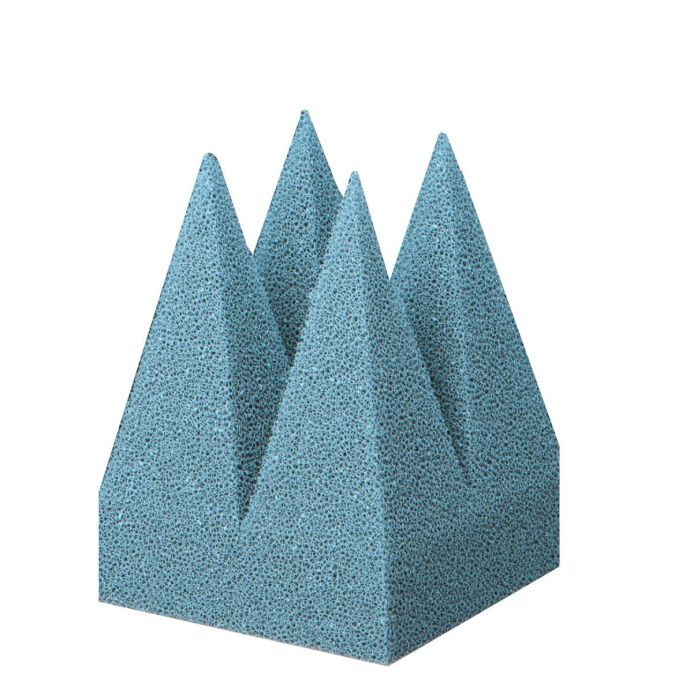

FF-3PCL Filter Foam Absorber - 4 GHz to 40 GHz
ETS-Lindgren's FF-3PCL Filter Foam/Vent Absorber is similar in appearance and geometry to conventional pyramidal materials and is tested to the same rigid specifications. Fabricated using open cell/reticulated polyurethane foam substrates, the large pore size allows for easier airflow and handles approximately 10 times more RF power than conventional absorbers with forced air.
Key Features:
- Frequency Range: 4 GHz to 40 GHz
- Overall Height: 7.6 cm (2.99 in)
- Open Cell/Reticulated Foam for Enhanced Airflow
- 1.0 W/in² Power Handling (up to 10x with forced air)
- Non-Hygroscopic Substrate
- Fire Retardant
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Dimensions | 61 cm x 61 cm x 7.6 cm (24 in x 24 in x 2.99 in) |
| Maximum Frequency | 40 GHz |
| Minimum Frequency | 4 GHz |
| Standards | NRL 8093 Tests 1, 2 and 3; UL 94; DIN 4102-B2 |
| Footprint | 24 in x 24 in (61 cm x 61 cm) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
