FT3424
FT3424
Hioki

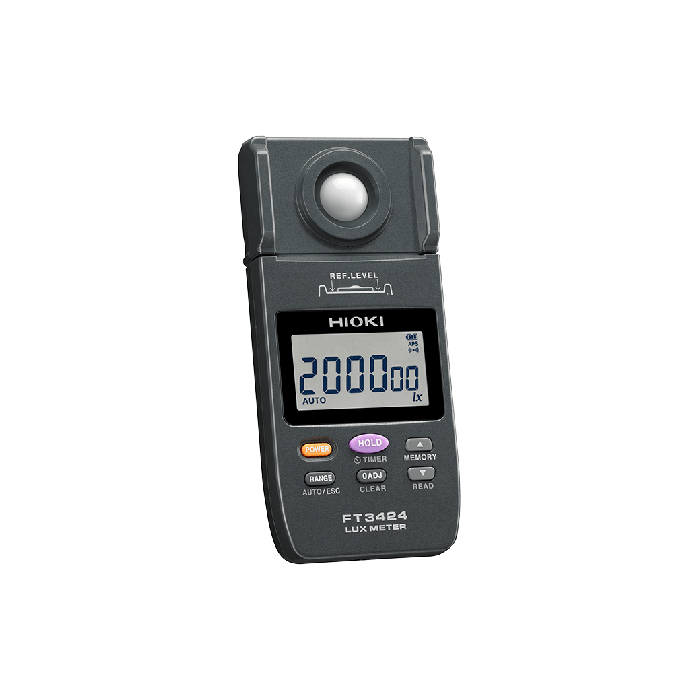

Lux Meter FT3424 - Light Meter with Broad Coverage from Low to High Illuminance
The FT3424 is a light meter designed for an extensive range of applications involving illumination equipment, lighting work and facility management. Capable of testing even LED lighting, the FT3424 provides five measurement ranges, 20 lx to 200 000 lx, to support a wide range of luminance levels.
More Information
Attribute
Value
Key Features
Compatible with LED lighting Complies with DIN 5032-7:1985 class B and JIS C 1609-1:2006 general AA class Timer hold function lets you make measurements in remote locations while avoiding the effects of shadows and reflections Save up to 99 measured values in the instrument’s internal memory Transfer data to the PC later and improve work efficiency
Basic Specifications
Standards
DIN 5032-7: 1985 class B, JIS C 1609-1: 2006 general AA class
Light receiving element
Silicon photo diode
Range selection
Auto/ Manual
Linearity
±2% rdg. (Multiply by 1.5 for display values in excess of 3000 lx.)
Accuracy guarantee for temperature and humidity
21 °C to 27 °C (69.8 °F to 80.6 °F), 75% rh or less (non-condensing)
Response time
Auto range: within 5 seconds, Manual range: within 2 seconds
D/A output
Output level: 2 V/range f.s. (2.5 V is output when the range f.s. is exceeded.)
Output accuracy: ±1% rdg. ±5 mV (at display count)
Functions
Timer hold function, Memory function (Up to 99 measured data can be saved.), Hold, Auto power off function, Buzzer sound, Backlight, Zero adjustment
Power supply
LR6 Alkaline battery ×2 (continuous use 300 hours), Max. rated power 500 mVA, or R6 Manganese battery ×2, or USB bus power (5 VDC)
Dimensions and mass
78 mm (3.07 in)W × 170 mm (6.69 in)H × 39 mm (1.54 in)D, 310 g (10.9 oz) (including the batteries)
Accessories
Instruction Manual ×1, LR6 Alkaline battery ×2, Sensor cap (with strap) ×1, Carrying case (soft) ×1, Strap (for instrument) ×1, USB cable (0.9 m/2.95 ft) ×1, CD (USB driver, dedicated computer application software, and communications specifications) ×1
Instrument Type
Lux Meter
