FT3425
FT3425
Hioki

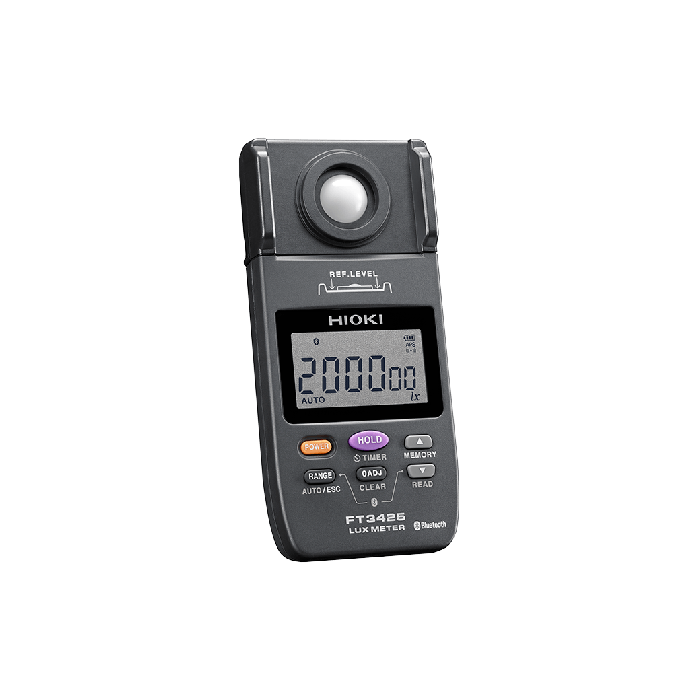

Lux Meter FT3425 - High Reliability LUX METER Series, Complies with DIN Class B, Compatible with LED/OLED Lighting
The FT3425 is a light meter designed for an extensive range of applications involving illumination equipment, lighting work and facility management. Capable of testing even LED lighting, the FT3425 provides five measurement ranges, 20 lx to 200 000 lx, to support a wide range of luminance levels, and comes built in with Bluetooth® wireless technology.
More Information
Attribute
Value
Key Features
Measured illuminance data is automatically sent to smartphone or tablet with Bluetooth® wireless technology Compatible with LED/OLED lighting Complies with DIN 5032-7:1985 class B and JIS C 1609-1:2006 general AA class Timer hold function lets you make measurements in remote locations while avoiding the effects of shadows and reflections Save up to 99 measured values in the instrument’s internal memory and transfer them to a computer later for improved work efficiency Data can be transferred to tablets and smartphones using Hioki’s dedicated free app \"GENNECT Cross\".
Basic Specifications
Standards
DIN 5032-7: 1985 class B, JIS C 1609-1: 2006 general AA class
Light receiving element
Silicon photo diode
Range selection
Auto/ Manual
Linearity
±2% rdg. (Multiply by 1.5 for display values in excess of 3000 lx.)
Accuracy guarantee for temperature and humidity
21 °C to 27 °C (69.8 °F to 80.6 °F), 75% rh or less (non-condensing)
Response time
Auto range: within 5 seconds, Manual range: within 2 seconds
D/A output
Output level: 2 V/range f.s. (2.5 V is output when the range f.s. is exceeded.)
Functions
Timer hold function, Memory function (Up to 99 measured data can be saved.), Hold, Auto power off , Buzzer sound, Backlight, Zero adjustment
Interfaces
USB 2.0 (FT3424/FT3425), Bluetooth® 4.0LE (FT3425 only)
Power supply
LR6 Alkaline battery ×2, Max. rated power 500 mVA, or R6 Manganese battery ×2, or USB bus power (5 VDC)
Continuous battery operation time
300 hours (when using LR6 batteries, with Bluetooth® OFF), 80 hours (when using LR6 batteries, with Bluetooth® ON)
Dimensions and mass (including the batteries)
78 mm (3.07 in)W × 170 mm (6.69 in)H × 39 mm (1.54 in)D,
Accessories
Instruction Manual ×1, AA/LR6 Alkaline battery ×2, Sensor cap (with strap) ×1, Carrying case (soft) ×1, Strap (for instrument) ×1, USB cable (0.9 m/2.95 ft) ×1, CD (USB driver, dedicated computer application software, and communications specifications) ×1, Precautions Concerning Use of Equipment that Emits Radio Waves ×1 (only FT3425)
Instrument Type
Lux Meter
