gXOB0013 B W-band X8 MMIC multiplier 82 – 91 (80 – 94) GHz
Gotmic W-band X8 MMIC multiplier 82 – 91 (80 – 94) GHz

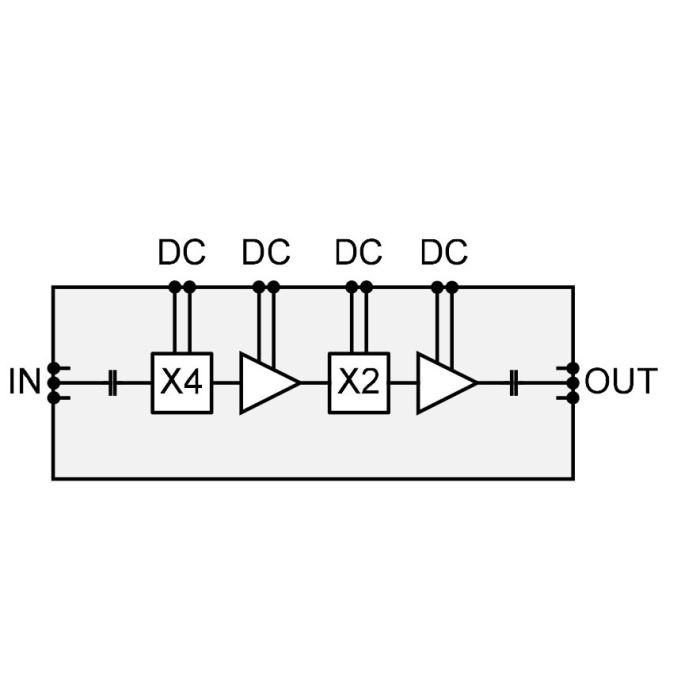

The Gotmic gXOB0013 GaAs pHEMT MMIC is an efficient X8 W-band multiplier ideal for point to point radio and radar applications. The chip has an integrated output buffer. At the recommended drive level of 10 dBm the output power is typically 11 dBm with better than 20 dBc harmonic isolation and 400 mW power dissipation.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Applications |
|
| Storage Temperature | -65 to +150°C |
| Maximum Frequency | 91 Ghz |
| Band | W Band |
| Minimum Frequency | 82 Ghz |
| Operating Temperature | -40 to + 85°C |
| Product Type | Frequency_Multiplier |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
