gXSB0019 A V-band X6 MMIC multiplier 57 – 66 (52 – 72) GHz
Gotmic V-Band X6 MMIC Multiplier 57 – 66 (52 – 72) GHz

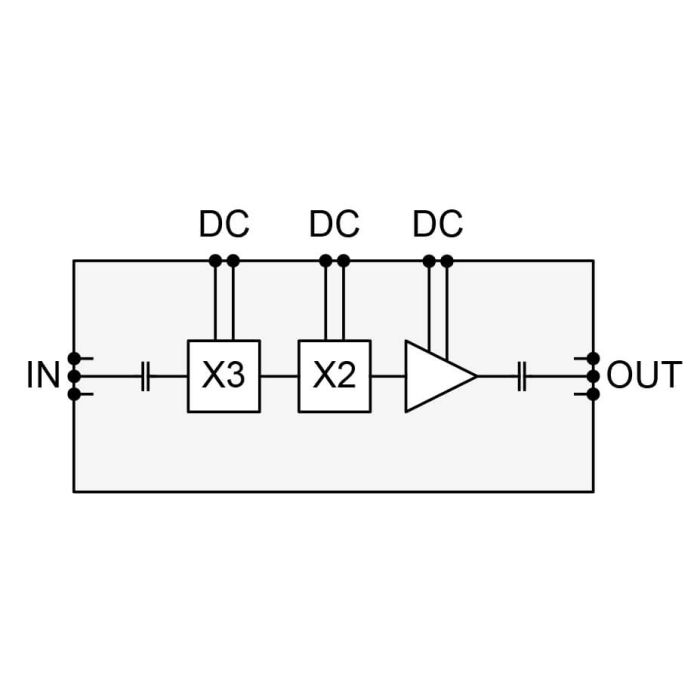

The Gotmic gXSB0019 GaAs pHEMT MMIC is an efficient X6 V-band multiplier ideal for point-to-point radio applications. The chip has an integrated output buffer. At the recommended drive level of 10 dBm the output power is typically 8 dBm with better than 15 dBc harmonic isolation and 450 mW power dissipation.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Applications |
|
| Storage Temperature | -65 to +150°C |
| Maximum Frequency | 66 Ghz |
| Band | V Band |
| Minimum Frequency | 57 Ghz |
| Operating Temperature | -40 to + 85°C |
| Product Type | Frequency_Multiplier |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
