Harting 09140122634
09140122634PROMO
Harting

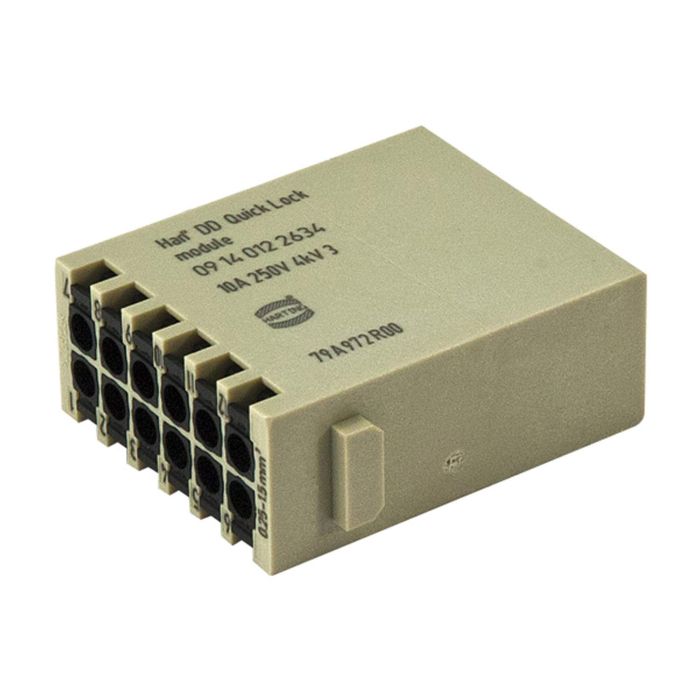

Han DD Quick-Lock module, male Au
Han DD® module, Han-Quick Lock® termination, Male, Contacts: 12, Conductor cross-section: 0.25...1.5 mm, Rated current:10 A, Polycarbonate (PC), RAL 7032 (pebble grey), Copper alloy, Gold plated
Buy Online
| Attribute | Value |
|---|---|
| Product Segment | 407 Han-Modular® |
| Product Family | Han-Modular Modules |
| Product Brand Name | 09 14 012 2634 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 2 |
| Quantity Interval | 2 |
| Country of origin | RO |
| Manufacturer's Brand | Han-Modular® |
| Number of poles | 12 |
| Material contact surface | Gold |
| Number of power contacts | 12 |
| Insertion cycles minimum | 500 |
| PE connection present ? | No |
| Rated voltage (V) | 250 |
| Contact type | Han-Quick Lock® termination |
| Insulation stripped length (mm) | 10 |
| Contact design | Pin |
| Rated_surge_voltage (V) | 4 |
| Conductor connection method | Radial spring connection |
| Pollution degree | 3 |
| Conductor cross-section mm2 | 0.25…0.25 |
| Contact insert material | Plastic |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 10 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
