Harting 09200103001
09200103001PROMO
Harting

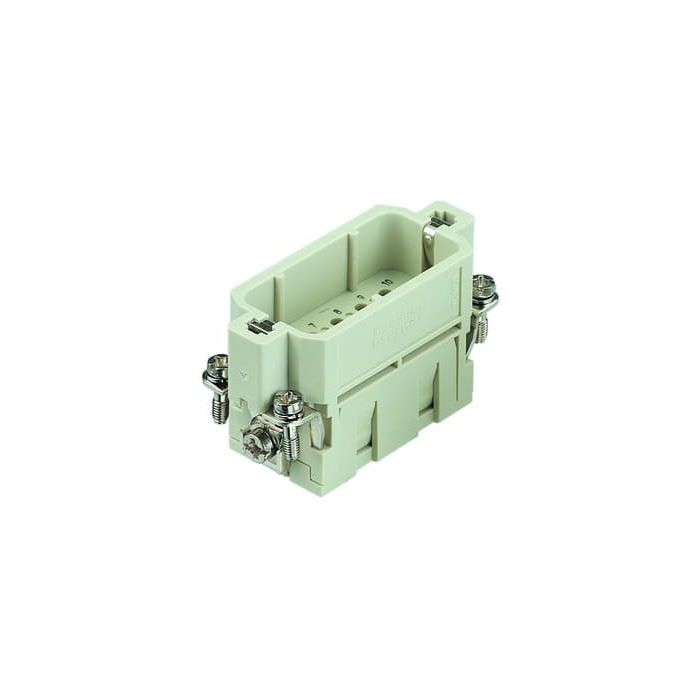

Han 10A-STI-C
Inserts, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:16 A, Size: 10 A, Contacts: 10, Conductor cross-section: 0.14...4 mm
Buy Online
| Attribute | Value |
|---|---|
| Product Segment | 421 Han A® |
| Product Family | Han A Male Insert-C |
| Product Brand Name | 09 20 010 3001 |
| Manufacturer | HARTING |
| Customs tariff number | 85389099 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | DE |
| Manufacturer's Brand | Han A® |
| Size | 10 A |
| Number of poles | 10 |
| Insertion cycles minimum | 500 |
| PE connection present ? | Yes |
| Rated voltage (V) | 250 |
| Contact design | Pin |
| Rated_surge_voltage (V) | 4 |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | crimp connection |
| Pollution degree | 3 |
| Conductor cross-section mm2 | 0.14…4 |
| Contact insert without contact ? | Yes |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 16 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
