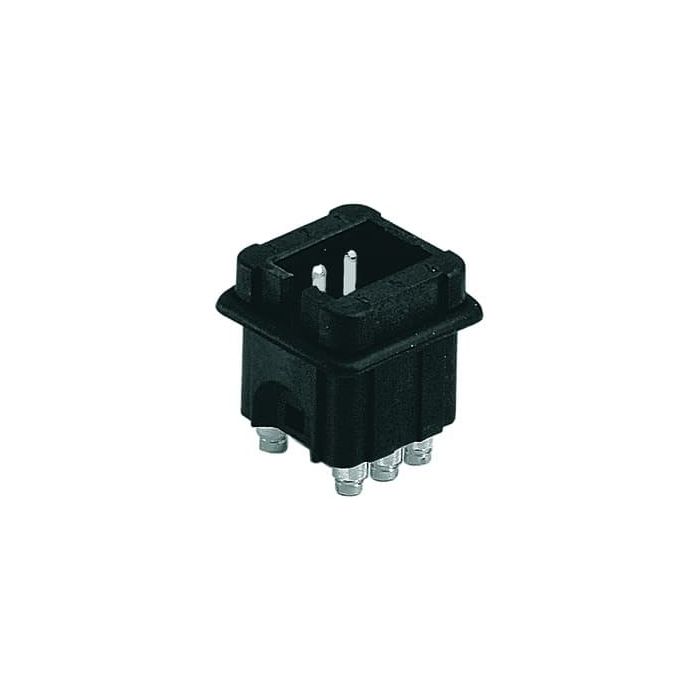

Harting 09700062615
09700062615PROMO
Harting
STAF 6 STI-L
Inserts, Solder termination, Male, Polyamide (PA), Black, Rated current:10 A, Size: 3 A, Contacts: 6, Conductor cross-section: 2.5 mm, Copper alloy, Silver plated
In stock
| Attribute | Value |
|---|---|
| Product Segment | 422 Staf Inserts |
| Product Family | Staf Insert M |
| Product Brand Name | 09 70 006 2615 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 10 |
| Quantity Interval | 10 |
| Country of origin | RO |
| Manufacturer's Brand | Staf® |
| Size | 3 A |
| Number of poles | 6 |
| Material contact surface | Silver |
| Insertion cycles minimum | 500 |
| PE connection present ? | No |
| Rated voltage (V) | 25 |
| Contact design | Pin |
| Rated_surge_voltage (V) | 0.8 |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | Soldered connection |
| Pollution degree | 3 |
| Conductor cross-section mm2 | 2.5 max |
| Material contact | Other copper alloys |
| Fire resistance class | HB |
| Standards | EN 60664-1 |
| Current Rating (A) | 10 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
