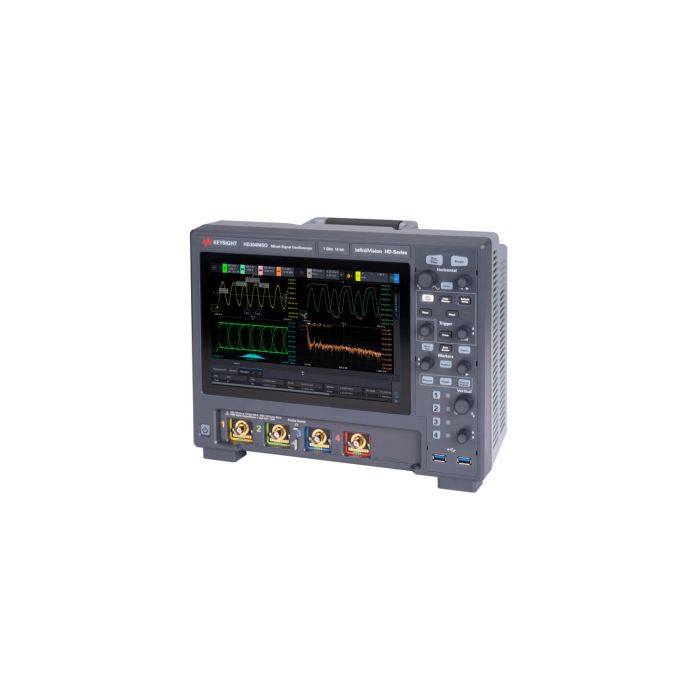

HD302MSO-350
HD302MSO-350
Keysight Technologies
HD3 Series, 350 MHz, 2 Analog Channels
4x the resolution, half the noise
Leveraging hardware technology from Keysight's UXR Series, the HD3 Series boasts the most impressive resolution on the market with 4x the vertical resolution and 1/2 the front-end noise of any oscilloscope in this class. See what you've been missing with the highest accuracy, 25x deeper memory and all-new custom technology ranging from 200 MHz to 1 GHz.
This configuration of the HD3 Series consists of the 2 channel base model number (HD302MSO) with the default 350 MHz option (HD302MSO-350).
Industry-First Software - Fault Hunter
The InfiniiVision HD3 Series oscilloscope enables you to capture small signals more accurately than ever before with its low noise front-end and the world’s first 14-bit ADC in an oscilloscope. This offers you 4x more vertical resolution relative to other 12-bit oscilloscopes. Combine this with the industry’s only uncompromised waveform update rate, powerful new features such as Fault Hunter, deep memory, and hardware accelerated testing, and the HD3 Series is the perfect oscilloscope for your applications.
What's Included with the Keysight HD302MSO-350 HD3 Series Oscilloscope:
- An HD3 Series Oscilloscopes with 200 MHz of Bandwidth
- 2 pack of 500 MHz Passive Probes
- Fault Hunter
- Frequency Response Analysis
- Zone Trigger
- Segmented Memory
- MSO License (Compatible with 3000A/T/G and 4000A/G X-Series MSO cables)
- Mask Testing
- Waveform and measurement histograms, FFT, and more!
- KeysightCare Technical Support
- 3 year warranty
- Localized interface with front panel overlay
- Localized power cord
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz |
| Channels | 2 + 16 |
| ADC Bits | 14 Bits |
| Max Memory Depth | 100 Mpts per channel |
| Display Size | 10.1-inch capacitive touch gesture-enabled display |
| Waveform Update Rate | Uncompromised > 1,300,000 waveforms per second |
| Series | HD3 Series |
| Dimensions | 33.5 cm (13.2 in) x 26.2 cm (10.3 in) x 16.8 cm (6.6 in) |
| Key Features |
|
| Noise Floor | 50 µvrms |
| Sample Rate | 3.2 GSa/s per channel |
| Vertical Resolution | 14 bits (up to 16 bits in high-resolution acquisition mode) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
