HI-2790B
HI-2790B
ETS-Lindgren
Microwave Survey Meter Calibration Verification System
The HI-2790B system verifies calibration consistency of microwave oven survey meters using a controlled 2450 MHz source, reference meter, and portable anechoic chamber for reliable compliance testing.

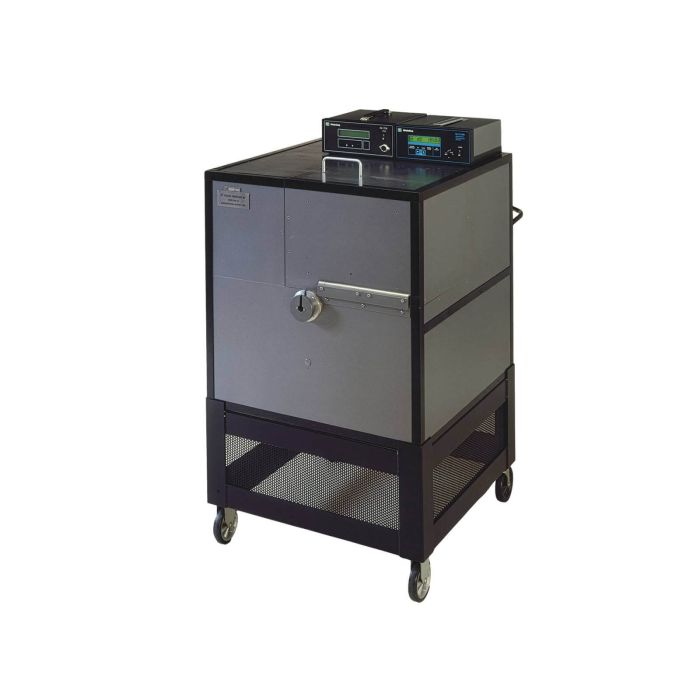

The HI-2790B Calibration Comparison System provides a complete, controlled environment for verifying the calibration stability and measurement consistency of microwave oven survey meters used in compliance and quality assurance testing. Designed to meet U.S. Government CDRH/FDA requirements, the system includes a precision 2450 MHz source, an HI-1710A Local Calibration Reference Meter, and a portable anechoic chamber equipped with a slotted-end waveguide antenna and probe rotation fixture.
This setup enables repeatable, plane-wave-equivalent power density evaluations across a dynamic range of 0.1 to 5 mW/cm². The HI-2790B is intended for comparison checks rather than absolute or transfer calibration, ensuring each survey instrument remains within specified accuracy throughout routine verification cycles.
Its portable chamber and integrated control module make it easy to position within production or laboratory environments, providing a dependable method for maintaining long-term measurement integrity.
Key Features:
- 2450 MHz Source with Control
- HI-1710A Local Calibration Reference Meter
- Anechoic Test Chamber with Slotted-end Waveguide Antenna and Probe Rotation Fixture
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Configuration |
|
| Output |
2450 MHz, 4 W max |
| Power Input |
100 – 240 VAC |
| Frequency Range | 2450 + 0.1 MHz over an ambient temperature range of 20°C to 24°C |
| Dynamic Range | 0.1 – 5 + mW/cm2 Plane-wave equivalent power density at probe test location |
| Product Category | Survey Meter |
