Raditeq

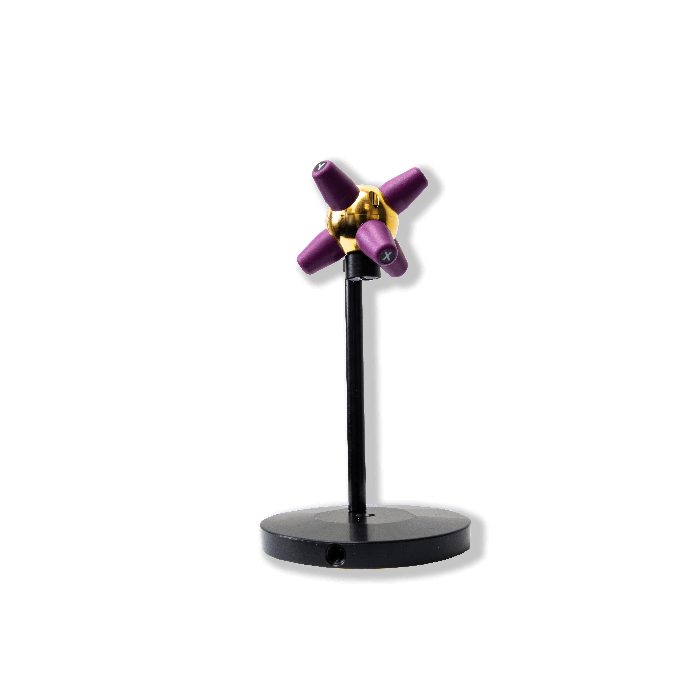

RadiSense®10E (Set)
RadiSense® Set, 20 MHz to 10 GHz
The RadiSense® Essential probe makes the highly accurate RadiSense probes accessible for every budget. The probe is based on the proven design of the RSS2010H probe (Pro series). During the development of the RSS2010E, no compromises were made to the measurement accuracy of this new model. On top of this, the RSS2010E still offers the convenience of a laser-powered probe, for the price of a battery-powered probe!
Although this model has reduced measurement range and speed specifications compared to the Pro series probes, It is still faster compared to battery-powered probes available on the market!
During tests in an anechoic chamber, the surrounding walls, floor and ceiling will cause reflections. These reflections arrive at the probe elements from different angles. This results in large and unpredictable measurement errors when your probe is not isotropic. Like all other RadiSense® probes, the RSS2010E has an excellent isotropic behavior. In contradiction to most other probes, the isotropic response of the RSS2010E is specified over its full frequency range!
What's Included:
- RSS2010E E-field probe
- LPS2001B LASER power plug-in card (for RadiCentre®)
- CBL2001-10M Optic fibre extension cable (10 meters)
- CPL2001A Optic fibre coupling connectors FC/ST (2x)
- CPL2001A Optic fibre cleaning pen
- PST2000A Probe stand – including 4 height rods
- CTR1001S RadiCentre® slim – modular test system
- RSS2010 CASE RadiSense® carrying and protective case
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Applications | CW signal measurements Pre Certification Anechoic Chamber GTEM Cell |
| Linearity | ±0.5 dB ±0.5 V/m |
| Maximum Frequency | 10 GHz |
| Minimum Frequency | 20 MHz |
| Damage Level | 250 V/m |
| Isotropy |
±0,5 dB (20 MHz to 1 GHz) |
| Frequency Response | -4 dB +1.5 dB (20 MHz to 1 GHz) '-3 dB +3.5 dB (1 to 10 GHz) |
| Frequency Range | 20 MHz to 10 GHz |
| Resolution | 0.01 V/m |
