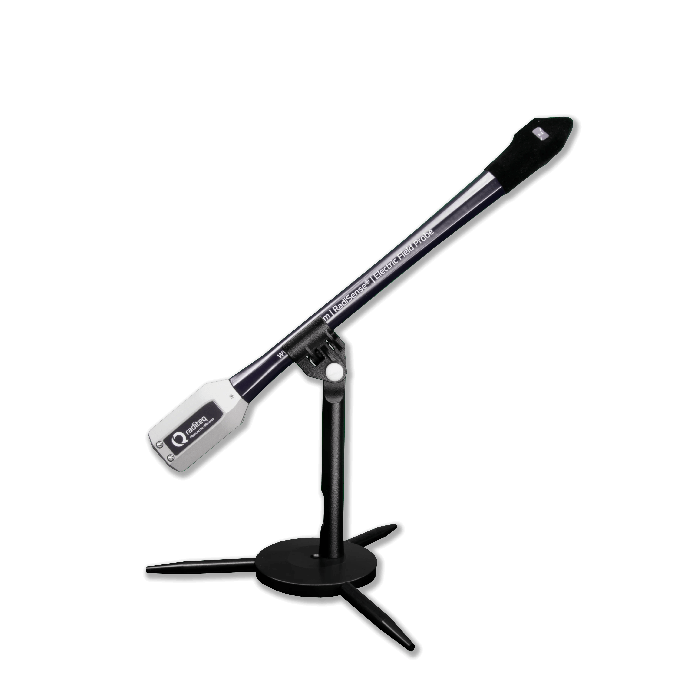

RadiSense® 18U
RadiSense® Ultra – The Probe made for extremely fast Signal Measurements – CW and Pulsed Signal
The RadiSense® RSS3018U is a field probe designed for EMC/RF applications requiring high-speed measurements. It is particularly useful for mode-stirred measurements and when measuring pulse-shaped fields, such as those encountered when measuring radar pulses.
This model provides direct measurement of pulsed RF fields on all axes simultaneously, meeting
the requirements of defense, aerospace, and automotive standards. It is capable of measuring pulsed RF fields at a maximum measurement speed of 2 million complete readings per second, making it a perfect fit for high-speed applications.
The RadiSense® probe provides real-time (non-buffered) data, always returning an actual measurement value whenever a new field strength value is requested. This avoids the use of buffered measurement values that were previously measured before the field strength was requested. The use of buffered (outdated) data may result in incorrect measurement values, which may destabilize automatic leveling routines of the control software. This ensures accurate and reliable measurements in real-time.
What's Included:
- Probe stand
- Carrying and protection case
- Optic fibre cleaning pen
- Hardcopy Quick Start Guide
- USB stick containing PDF format product manual, datasheet and ISO17025 accredited calibration certificate (in case ordered separately)
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 127 mm x 311 mm x 254 mm (5.0 in x 12.25 in x 10.0 in) |
| Applications |
|
| Linearity | ±1 dB ±0.5 V/m |
| Maximum Frequency | 18 GHz |
| Minimum Frequency | 20 MHz |
| Damage Level | 1500 V/m |
| Frequency Response | -4 dB to +1.5 dB |
| Frequency Range | 20 MHz - 18 GHz |
| Flatness | Frequency correction OFF 1 to 150 MHz: 0,8 dB 0,5 to 6000 MHz: 1,6 dB 0,3 to 7500 MHz: 3,2 dB Frequency correction ON, typical 0,3 to 7500 MHz: 0,4 dB |
| Resolution | 0.01 V/m |
| Sampling Rate | 2 000 000 Measurement/s | 8 000 000 Samples/s |
