HI-6105

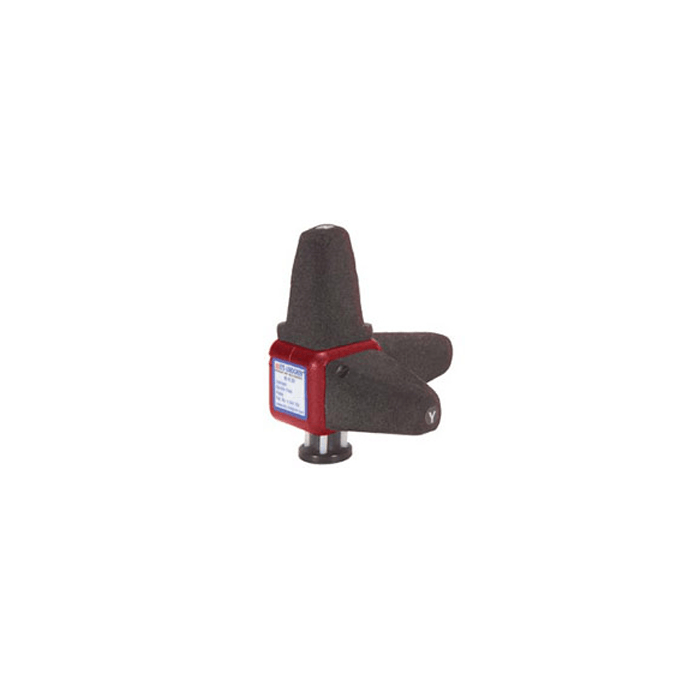

HI-6105 Electric Field Probe operates at a Frequency Response of 100 kHz to 6 GHz

ETS-Lindgren's laser-powered HI-6105 Electric Field Probe embodies the latest innovations in isotropic sensor design and low noise, miniaturized electronics. Designed to be single range reading, the HI-6105 can read data continuously over the entire dynamic range. Data values for each axis (X, Y, and Z) can be read individually or summed.

Fiber optic signal and power lines link the Model HI-6105 RF eld probe to either the EMCenter, or as a direct connect to a PC USB port with the HI-6113 Laser Data Interface and ProbeView™ Laser Software. The EMCenter™ Modular RF Platform along with the EMSense™ interface card can be used with the HI-6000 series eld probes as a Field Monitor in addition to its capability as a system level platform.

The HI-6113 Laser Data Interface provides the laser power and communications for the HI-6105 Electric Field Probe. A USB connection to the PC allows for quick and easy data collection, using ProbeView for Laser Probes software.

Key Features:

• Laser Powered - Permits Extended Testing
• Frequency Response:
  • 100 kHz to 6 GHz
  • Dynamic Range 0.5 V/m to 800 V/m (Single Range)
• Provides Individual and Summed Axis Values
• A2LA Accredited Calibration Report
• Suitable for MIL Standard Specs:
  • MIL-STD 461F Radiated Susceptibility (RS)
• Suitable for Automotive Specs:
  • SAE J1113 27
  • GMW 3091/3097/3103
  • FORD FMC 1278
• Suitable for Commercial Specs: EN/IEC 61000-4-3 Radiated Immunities
• Operates with Most 3rd Party Immunity Software
• For High Field and High Frequency Requirements the Model HI-6x53 is Recommended
