RSS2040S
RSS2040S
Raditeq

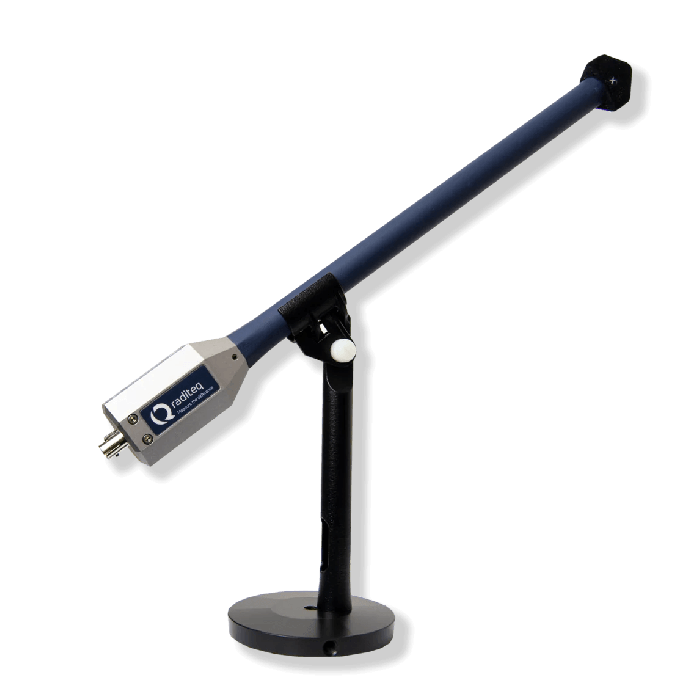

RadiSense® 40S
High-Frequency E-Field Probe, 10 MHz to 40 GHz
The RadiSense® 40 has a very wide frequency range allowing accurate isotropic E-field strength measurements with a large dynamic range. These specifications make the RadiSense® 40 ideal for EMC Automotive, Military/Aerospace and CE marking applications.
The RSS2040S provides unprecedented amplitude accuracy and isotropy, with a maximum measurement speed of 100 measurements/second (simultaneous X-Y-Z axis + isotropic value). This makes the RSS2040S field probe ideal for immunity test applications when measuring continuous wave (CW) and or pulse-modulated (PM) fields as defined in the Mil-Std 461.
RadiSense® 40 is intended to be used in combination with the RadiCentre® modular test system, which is available as a 1-slot (CTR1001S), 2-slot (CTR1004B), 7-slot (CTR1009B) or 8-slot (CTR2008A) RadiCentre®. The probe is connected to the plug-in card (model LPS2001B). The plug-in card provides the laser power source and bi-directional communication to the probe. The fiber optic extension cable between the RadiSense® 40 probe and the LPS2001B plug-in card is standard available at three different lengths (10, 20 or 30 m). A maximum of 100 m is available on request.
What's Included:
- Probe stand
- Carrying and protection case
- Optic fibre cleaning pen
- Hardcopy Quick Start Guide
- USB stick containing PDF format product manual, datasheet and ISO17025 accredited calibration certificate (in case ordered separately)
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Applications | CW Signal Measurement CE Marking Pulse Modulated Anechoic Chamber |
| Linearity | ± 0.5 dB ± 0.5 V/m |
| Maximum Frequency | 40 GHz |
| Minimum Frequency | 10 MHz |
| Damage Level | 2000 V/m |
| Frequency Response |
-4.0 dB + 2 dB (10 to 20 MHz) ± 1 dB (20 MHz to 40 GHz) |
| Frequency Range | 10 MHz to 40 GHz |
| Flatness | Frequency correction OFF 0,1 to 150 MHz: 0,4 dB 0,05 to 6000 MHz: 1,6 dB 0,03 to 7500 MHz: 3,2 dB Frequency correction ON, typical 0,05 to 7500 MHz: 0,4 dB |
| Resolution |
0.001 V/m < 0 to 10 V/m |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
