HI-6006
HI-6006
ETS-Lindgren

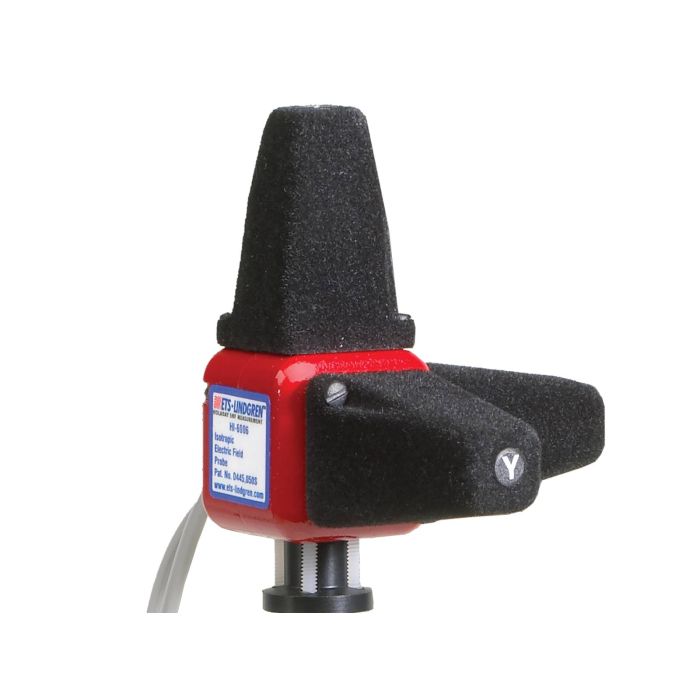

Electric Field Probe with Field-Replaceable Battery
Wideband High-Accuracy Electric Field Probe
The HI-6006 Electric Field Probe is a fully intelligent, wideband sensor engineered for precise EMF measurements across a broad 100 kHz to 6 GHz frequency range. Designed for demanding immunity testing, it supports MIL-STD-461F radiated susceptibility, key automotive requirements—including SAE J1113/27, GMW 3091/3097/3103, and FMC 1278—and commercial standards such as IEC/EN 61000-4-3.
The HI-6006 offers a generous single-range dynamic span of 0.5 to 800 V/m, enabling continuous, uninterrupted data capture without the need for range switching. Users can access individual X, Y, and Z axis values or view summed isotropic field strength, enhancing flexibility for complex field environments. Its field-replaceable battery allows quick swaps without affecting system calibration, ensuring minimal downtime during testing cycles.
Optical coupling to a range of readout options—including serial, USB, and EMCenter interfaces—provides noise-immune communication ideal for high-field test chambers. Compact, lightweight, and rugged, the HI-6006 delivers industry-leading performance for laboratory, compliance, and automotive EMC evaluation.
Key Features:
- Frequency Response: 100 kHz to 6 GHz
- Dynamic Range: 0.5 to 800 V/m
- Provides Individual and Summed Axis Values
- A2LA Accredited Calibration Report
- Suitable for MIL Standard Specs:
- MIL-STD 461F Radiated Susceptibility (RS)
- Suitable for Automotive Specs:
- SAE J1113/27
- GMW 3091/3097/3103
- FORD FMC 1278 nSuitable for Commercial Specs:
- EN/IEC61000-4-3 Radiated Immunity
- For High Field and High Frequency Requirements, the HI-6053 is Recommended
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | Total Length Including Body: 30 cm (11.81 in) |
| Linearity | 0.5 dB (1 to 800 V/m) |
| Maximum Frequency | 18 GHz |
| Minimum Frequency | 20 MHz |
| Damage Level | 1500 V/m |
| Frequency Response |
500 kHz to 2 GHz +1.0, -2.5 dB 2 to 5.5 GHz +3.5, -4.5 dB 5.5 to 6 GHz + 2.0, -6.0 dB |
| Frequency Range | 20 MHz to 18 GHz |
| Dynamic Range | 0.5 to 800 V/m (Single Range) |
| Operating Humidity | 10% to 90% RH (Non-Condensing) |
| Resolution | 0.01 V/m |
| Sampling Rate | 70 Samples/Second Maximum |
| Fibre Optic Connector | LASER: FC/PC; Data: FSMA |
| Fibre Optic Length | Maximum 100 m extension fibers |
| Probe Holder Tip | Stalk Probe |
| Product Category | RF Field Probe |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
