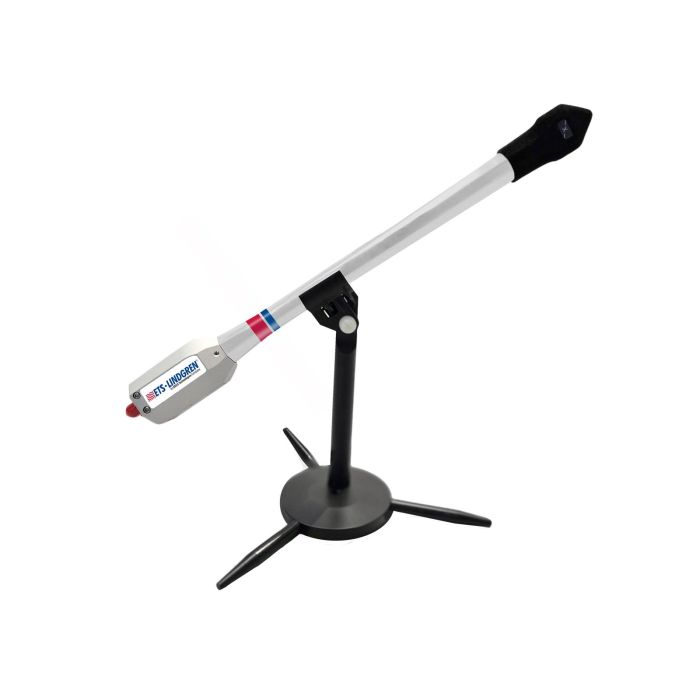

EMSense™ Platinum Laser-powered Electrical Field Probe
Precision and Speed in Electromagnetic Field Measurement with EMSense™ Platinum Probe
The EMSense™ Platinum Laser-powered Electrical Field Probe is engineered for applications where speed, accuracy, and real-time measurement are critical. Ideal for EMC and RF testing, pulsed fields, radar pulse analysis, and mode-stirred chambers, the probe provides exceptionally fast performance while maintaining precise measurement integrity. Its compact stalk-style design houses three orthogonal dipole antennas in a 1 cm³ measurement volume, suitable for both confined and open environments.
Factory-calibrated to ISO/IEC 17025 standards, the probe also allows users to upload custom frequency correction data for enhanced flexibility and long-term accuracy. Integration with ETS‑Lindgren’s EMCenter™ EM8 system is seamless, supporting single-slot benchtop units or high-speed, multi-slot rackmount configurations.
Key Features:
- Ultra-Fast Measurements
- Wide Frequency Coverage of 20 MHz to 18 GHz
- High Accuracy: ±1 dB linearity, ±0.5 dB anisotropy (below 1 GHz), and 0.01 V/m resolution
- Laser-Powered Reliability: Immune to RF interference with up to 100 m fiber optic connection
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Linearity | ± 0.5 dB ± 0.5 V/m |
| Maximum Frequency | 40 GHz |
| Minimum Frequency | 10 MHz |
| Damage Level | 2,000 V/m |
| Isotropy | ± 0.5 dB @ 1 GHz |
| Frequency Response | -4 dB to +1.5 dB |
| Frequency Range | 10 MHz to 40 GHz |
| Dynamic Range | 2 to 1,000 V/m |
| Resolution |
0.001 V/m (2 – 10 V/m) |
| Sampling Rate | 100 Measurements/s Maximum (X, Y, Z & ETot) |
