HI-6023
HI-6023
ETS-Lindgren

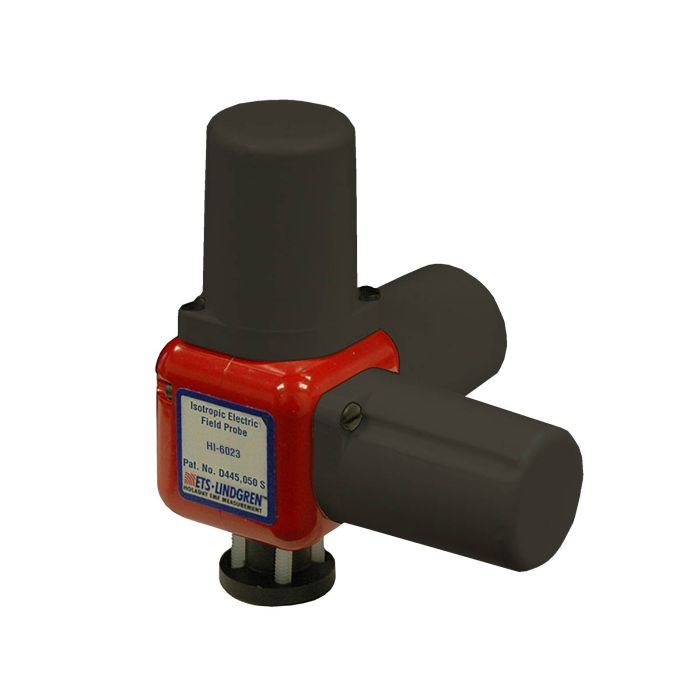

Electric Field Probe with Field-Replaceable Battery
Electric Field Probe with Field-Replaceable Battery
The HI-6023 Electric Field Probe is a fully intelligent sensor that delivers fast and accurate EMF measurements with industry-leading performance and optical coupling to various readout options. It provides continuous single-range readings across the entire dynamic range, with data available individually or summed for each axis (X, Y, Z).
A unique field-replaceable battery allows easy replacement without recalibration, and the probe integrates seamlessly with EMCenter platforms via HI-4413P Serial or HI-4413USB interfaces for flexible monitoring and data collection.
Key Features:
- Frequency Response: 10 kHz to 1 GHz
- Dynamic Range: 2.0 to 800 V/m
- Provides Individual and Summed Axis Values
- User Replaceable/Rechargeable Batteries
- A2LA Accredited Calibration Report
- Suitable for MIL Standard Specs:- MIL-STD 461F Radiated Susceptibility (RS) Suitable for Automotive Specs- SAE J1113/27- GMW 3091/3097/3103
- Suitable for Commercial Specs- EN/IEC61000-4-3 Radiated Immunity
- HI-4413P Fiber to Serial Converter (Option)
- HI-4413USB Fiber to USB Converter (Option)
- H-491269 Probe Stand Assembly (Option) 1 For High Field and High Frequency Requirements, the HI-6053 is Recommended
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | Cubical Housing: 32 mm (1.26 in) height |
| Linearity | 0.5 dB (2 to 800 V/m) |
| Isotropic Deviation | 0.5 dB @ 400 MHz |
| Maximum Frequency | 6 GHz |
| Minimum Frequency | 100 kHz |
| Configuration |
|
| Frequency Response |
10 kHz to 30 kHz +0.5, -2.5 dB 30 kHz to 1 GHz +/-1.0 dB |
| Frequency Range | 100 kHz to 6 GHz |
| Dynamic Range | 2.0 to 800 V/m (Single Range) |
| Overload | >1500 V/m CW |
| Internal Battery | 4.8 V NiMH, up to 8 Hours of operation Battery charger: 100-240 VAC Universal Input; 3-Hour Charge from Full Depletion |
| Resolution | 0.01 V/m |
| Sampling Rate | 70 Samples/Second Maximum |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
