Raditeq

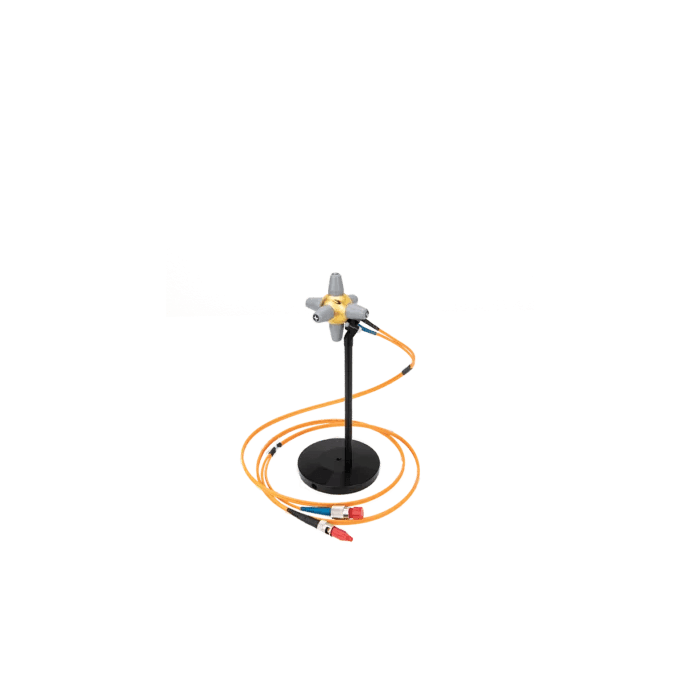

RadiSense® 10M
Electric Field Probe, 9 kHz to 10 GHz (usable up to 12 GHz)
The M-version of the RadiSense 10 uses dedicated hardware filtering making it capable of accurately measuring E-field test levels that are using a 1 kHz pulse modulated signal, like specified in the international Defence standard MilStd. 461G (RS103) and Aerospace DO-160G standard (Section 20).
What's Included:
- 2.5m optic fibre cable fixed connected to the probe
- PST2000A small probe stand
- Carrying and protection case
- Optic fibre cleaning pen
- Hard copy Quick Start Guide
- USB stick containing PDF format product manual, datasheet and ISO17025 accredited calibration certificate (in case ordered separately)
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Applications | Mil-Std Pulse Modulated signal Anechoic Chamber GTEM Cell |
| Linearity | ±0.5 dB ±0.5 V/m |
| Maximum Frequency | 10 GHz |
| Minimum Frequency | 9_khz |
| Damage Level | 1000 V/m |
| Frequency Response | ±1 dB (9 kHz – 10 GHz) |
| Frequency Range | 9 kHz to 10 GHz (usable up to 12 GHz) |
| Resolution | 0.01 V/m |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
