Raditeq

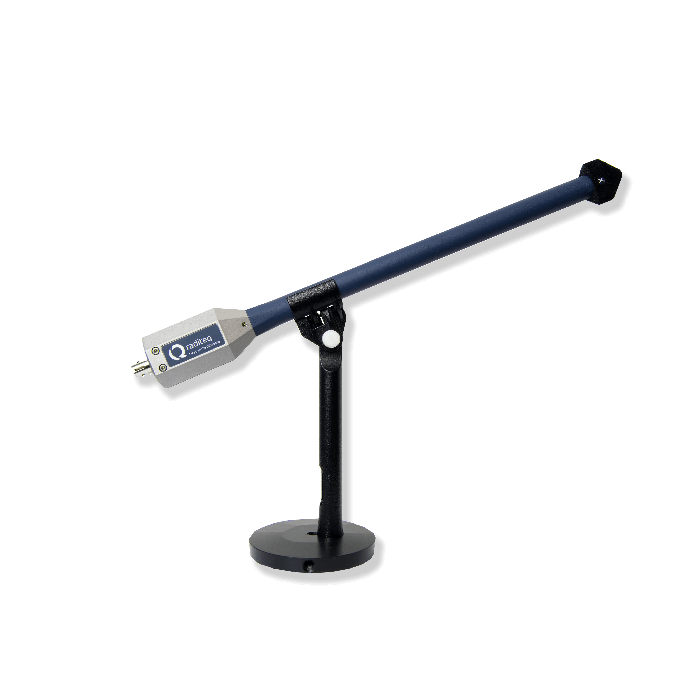

RadiSense® 26S
High-Frequency E-Field Probe, 10 MHz to 26 GHz
The RadiSense® 26 has a wide frequency range from 10 MHz to 26 GHz allowing accurate isotropic E field strength measurements within a range from 1 V/m to 1000 V/m. This wide range makes the RadiSense® 26 ideal for EMC Automotive, Military/Aerospace and CE marking applications.
The RSS2026S provides the most accurate frequency response and isotropy, with a maximum measurement speed of 100 measurements/second (individual X-Y-Z axis + isotropic value). This makes the RSS2026S field probe ideal for immunity test applications when measuring continuous wave (CW) and or Pulse modulated (PM) fields as defined in the Mil-Std 461.
The RadiSense® 26 is intended to be used in combination with the RadiCentre® modular test system, which is available as a 1-slot (CTR1001S), 2-slot (CTR1004B), 7-slot (CTR1009B) or the 8-slot (CTR2008A). The probe is connected to the laser power plug-in card (model LPS2001B) with FC/ST dual fiber links. The plug-in card provides the laser power source and bi-directional communication to the probe. The fiber optic extension cable between the RadiSense® 26 probe and the LPS2001B plug-in card is standard available at three different lengths (10, 20 or 30 m). Other lengths to a maximum of 100 m are available on request.
What's Included:
- Probe stand
- Carrying and protection case
- Optic fibre cleaning pen
- Hardcopy Quick Start Guide
- USB stick containing PDF format product manual, datasheet and ISO17025 accredited calibration certificate (in case ordered separately)
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Linearity | ± 0.5 dB ± 0.5 V/m |
| Maximum Frequency | 26 GHz |
| Minimum Frequency | 10 MHz |
| Damage Level | 2000 V/m |
| Frequency Response | -4.0 dB + 2 dB (10 MHz - 20 MHz) ± 1 dB (20 MHz - 26 GHz) |
| Frequency Range | 10 MHz to 26 GHz |
| Flatness | Frequency correction OFF 10 to 18000 MHz: 1,8 dB 3 to 23000 MHz: 3,2 dB Frequency correction ON, typical 0,3 to 26500 MHz: 0,4 dB |
| Resolution |
0.001 V/m < 0 - 10 V/m |
