RSS2060S
RSS2060S
Raditeq

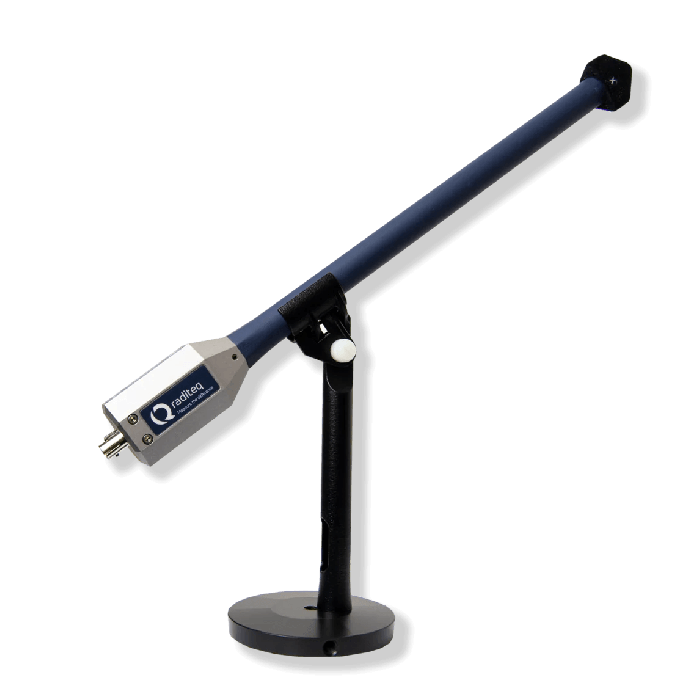

RadiSense® 60S
High-Frequency E-Field Probe, 20 MHz to 60 GHz
The RadiSense® 60 has a very wide frequency range, allowing accurate isotropic E-field strength measurements with a large dynamic range. These specifications make the RadiSense® 60 ideal for EMC Automotive, Military/Aerospace, and CE marking applications.
The RSS2060S provides unprecedented amplitude accuracy and isotropy, with a maximum measurement speed of 100 measurements/second (simultaneous X-Y-Z axis + isotropic value). This makes the RSS2060S field probe ideal for immunity test applications when measuring continuous wave (CW) and or pulse-modulated (PM) fields as defined in the Mil-Std 461.
What's Included:
- Probe stand
- Carrying and protection case
- Optic fibre cleaning pen
- Hardcopy Quick Start Guide
- USB stick containing PDF format product manual, datasheet and ISO17025 accredited calibration certificate (in case ordered separately)
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Applications |
CW Signal Measurement |
| Linearity | ± 0.5 dB ± 0.5 V/m |
| Maximum Frequency | 60 GHz |
| Minimum Frequency | 20 MHz |
| Damage Level | 2000 V/m |
| Isotropy | ±0.5 - ±4 dB |
| Frequency Response | ± 1 dB (20 MHz to 60 GHz) |
| Frequency Range | 20 MHz to 60 GHz |
| Flatness | Frequency correction OFF 0,1 to 150 MHz: 0,4 dB 0,05 to 6000 MHz: 1,6 dB 0,03 to 7500 MHz: 3,2 dB Frequency correction ON, typical 0,05 to 7500 MHz: 0,4 dB |
| Operating Temperature | 0 to 40 ˚C (32 to 104 ˚F) |
| Resolution |
0.001 V/m < 2 to 10 V/m |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
