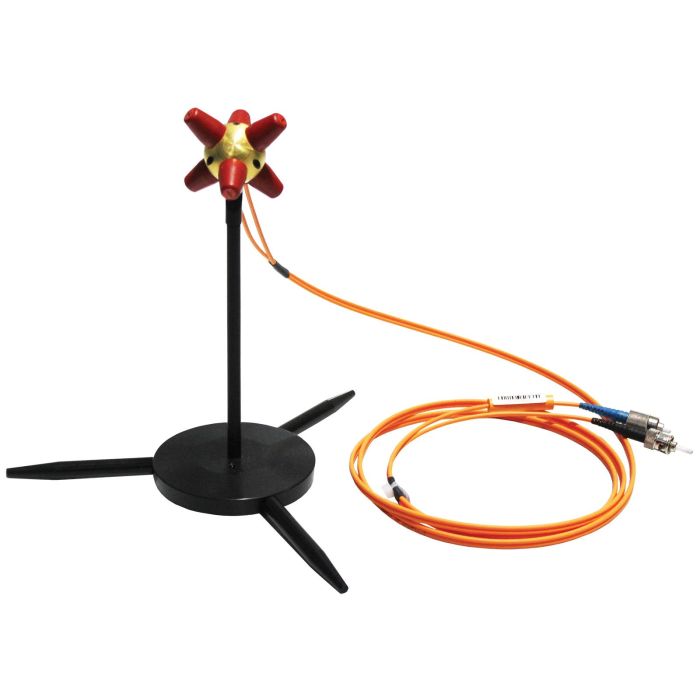

Laser-powered EMSense™ 10 Electric Field Probe (Model 7007201)
EMSense™ 10 Electric Field Probe - 10 kHz to 10 GHz (usable to 12 GHz) (Model 7007-201)
The EMSense™ 10 Electric Field Probe (Model 7007-201) features advanced isotropic sensor technology, low-noise performance, and miniaturized electronics for precise EMC field measurements. Designed as a single-range probe, it continuously reads data across the full dynamic range, with individual axis values (X, Y, and Z) available separately or as a summed total. Fiber optic signal and power lines connect the probe to an EMCenter 2-Slot or 7-Slot Modular RF Platform, or directly to a PC via USB when used with the EMCenter 1-Slot.
When paired with the EMCenter 2-Slot or 7-Slot platform and the EMSense 10 interface card, the system functions as a Field Monitor as well as a modular system-level platform. The EMCenter 1-Slot provides laser power and communications for the EMSense 10 and offers a direct USB connection for quick and efficient data collection through Laser Probes software.
The probe provides single-range isotropic field measurements with continuous X, Y, and Z axis data, uses fiber optic signal and power interfaces for noise-free communication, and is compatible with EMCenter 1-Slot, 2-Slot, and 7-Slot systems for flexible field monitoring and data acquisition.
Key Features:
- Laser Powered for Extended Testing
- Frequency Corrected Field Values Direct from Probe
- No Need to Apply Correction Factors
- Single Probe Frequency Range - 10 kHz to 10 GHz
- Broad Dynamic Range - 1 to 750 V/m
- Small Physical Size
- Six Axis Spherical Design
- Suitable for MIL Standard Specs
- MIL-STD 461F Radiated Susceptibility (RS)
- Suitable for Automotive Specs
- SAE J1113/27GMW 3091/3097/3103
- GMW 3091/3097/3103
- FORD FMC 1278
- Suitable for Commercial Specs
- EN/IEC 61000-4-3 Radiated Immunity
- A2LA Accredited Calibration
- EMSense 10 EMF Probe Plug-in Card (option)
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | Spherical, 0.98 in (2.5 cm) diameter |
| Linearity | ± 0.5 dB ± 0.5 V/m, 1-500 V/m |
| Maximum Frequency | 10 GHz |
| Minimum Frequency | 10 kHz |
| Damage Level | 1000 V/m |
| Isotropy | < ± 0.3 dB up to 1 GHz < ± 0.5 dB up to 3 GHz < ± 1 dB up to 6 GHz < ± 2 dB up to 10 GHz |
| Frequency Response | 10 kHz to 10 GHz (with internal correction) ± 1 dB |
| Frequency Range | 10 kHz to 10 GHz (usable to 12 GHz) |
| Dynamic Range | 1 to 750 V/m |
| Operating Humidity | 10% – 90% (non-condensing) |
| Resolution | 0.01 V/m |
| Sampling Rate | Max 100 measurements/sec |
| Fibre Optic Connector | LASER: FC/FC; Data: ST/ST |
| Fibre Optic Length | 1.5 m fixed to sensor; 10 m or 20 m extension with couplings (other lengths available on request) |
