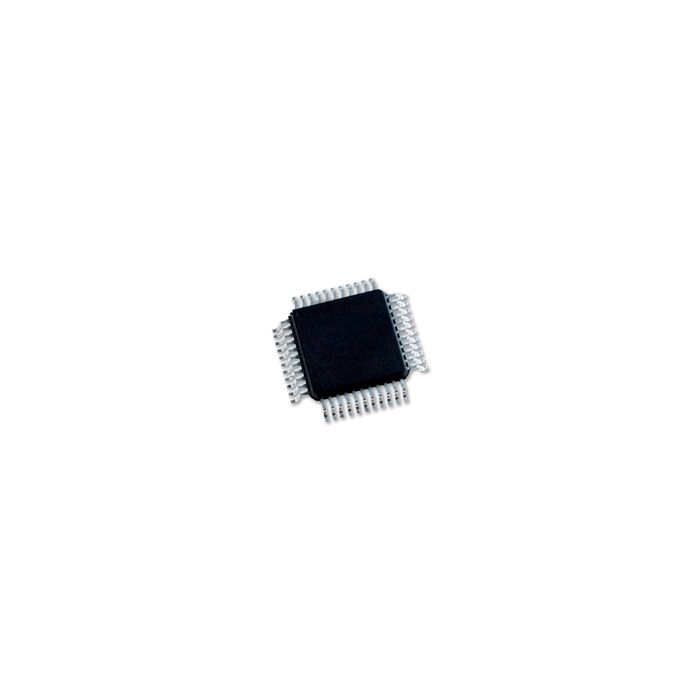

HI-35851PQTF
HI-35851PQTF
Holt Integrated Circuits
HI-3585 Series ARINC 429 Line Receiver
The HI-35851 is an ARINC 429 repeater which ensures that ARINC 429 signals can be reliably received from a transmission source and re-transmitted to another receiver (for example at the end of a long transmission line) that may otherwise not detect the signal of the original transmitter due to signal degradation. The HI-35851 will ensure the original transmitter signal can be relayed efficiently with the same signal integrity as the original source.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
HI-35851PQTF Specifications
- ARINC 429 specification compliant
- 3.3V or 5.0V logic supply operation
- No microprocessor necessary
- On-chip analog line driver and receiver connect directly to ARINC 429 bus
- Independent pin programmable Transmit and Receive data rate/slope
- Re-transmit ARINC 429 low speed data at high speed
- External input or output resistor options provide flexibility of additional external lightning protection
- Pin programmable label bit-order control
- 3.3V single-supply solution using external Holt line driver
- Low Power
- Extended temperature range
| Attribute | Value |
|---|---|
| RoHS | Yes |
| Product Type | ARINC 429 Line Receivers |
| Package Description | 44 Pin Plastic Quad Flat Pack (MQFP) |
| Moisture Sensitivity Level | 3.0000 |
| Product Longevity | > 10 years |
| Flow | T |
| Theta JA (°C/W): | 33.49 |
| Theta JB (°C/W): | 25.44 |
| Temperature Range | -55°C to +125°C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
