IDK-2112

IDK-2112

Advantech

12.1” SVGA and XGA 1,200cd/m2 Ultra High Brightness Industrial Display Kit with Touch solution, LVDS Interface

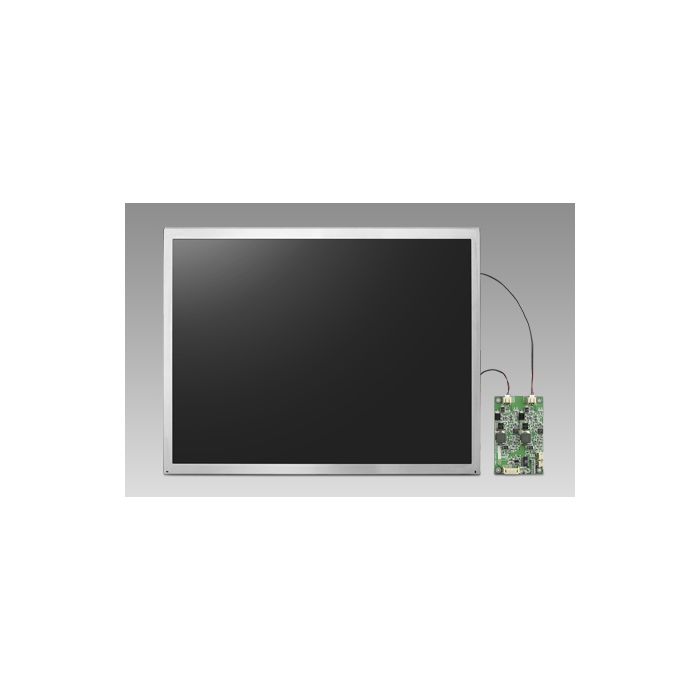

main product photo

The Advantech IDK-2112P series comes with a 12.1" industrial grade IPS LCD display with Projected Capacitive touch. IDK-2112P series supports Projected Capacitive touch with low power consumption. IDK-2112P series is ideal for embedded applications which customers have maximum flexibility for mechanical design.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • 12.1” LCD supports 800 x 600 and 1024 x 768 pixels
  • Ultra-high brightness of 1200cd/m² with LED backlight
  • -20℃~+70℃ wide operating temperature support
  • High contrast ratio
  • Superior sunlight readability
  • LVDS signal interface
  • AR surface treatment (Optional)
  • Manually VR brightness control (Optional)
  • Auto-dimming solution with light sensor (Optional)
  • Optical bonding (Optional)
Manufacturer Product Family IDK-2000 Series
Product Type Industrial Display Kit
More Information
Attribute Value
Data Sheet Click here to view
