IDK-2119

IDK-2119

IDK-2119

Advantech

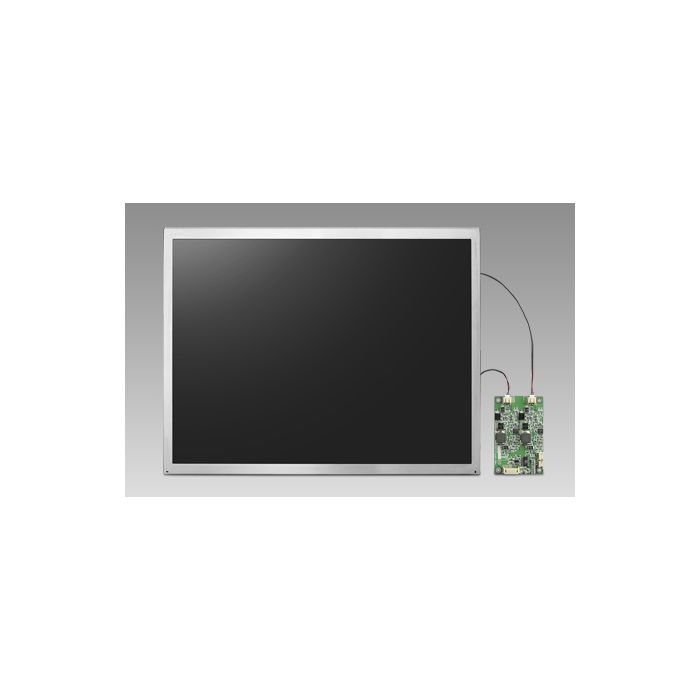

19” SXGA 1,200cd/m2 Ultra High Brightness Industrial Display Kit with LED B/L, LVDS Interface

The Advantech IDK-2119 series comes with a 19" 1200 cd/m2 industrial grade LCD display, and an LED driver board. The series is also available with flexible options for touch screens and enhanced treatment such as AR surface treatment and optical bonding solution.

IDK-2119 series supports 1200 cd/m2 high brightness with low power consumption at the maximum consumption of 35.42 W. Equipped with high level of brightness and wide operating temperature, IDK-2119 provides superior sunlight readability and is perfect for applications whether in semi-outdoor or outdoor environments.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Key Features
  • 19” LCD supports 1280 x 1024 pixels
  • Ultra-high brightness of 1200cd/m² with LED backlight
  • 0℃~+50℃ wide operating temperature support
  • High contrast ratio of 1100:1
  • Superior sunlight readability
  • Low power consumption 36.64W
  • LVDS signal interface
  • AR surface treatment (Optional)
  • Manually VR brightness control (Optional)
  • Auto-dimming solution with light sensor (Optional)
  • Optical bonding (Optional)
Manufacturer Product Family IDK-2000 Series
Product Type Industrial Display Kit
More Information
Attribute Value
Data Sheet Click here to view
