IMS - LANTIME M500

IMS - LANTIME M500

Meinberg

Time and Frequency Synchronisation in Rail Mount Chassis

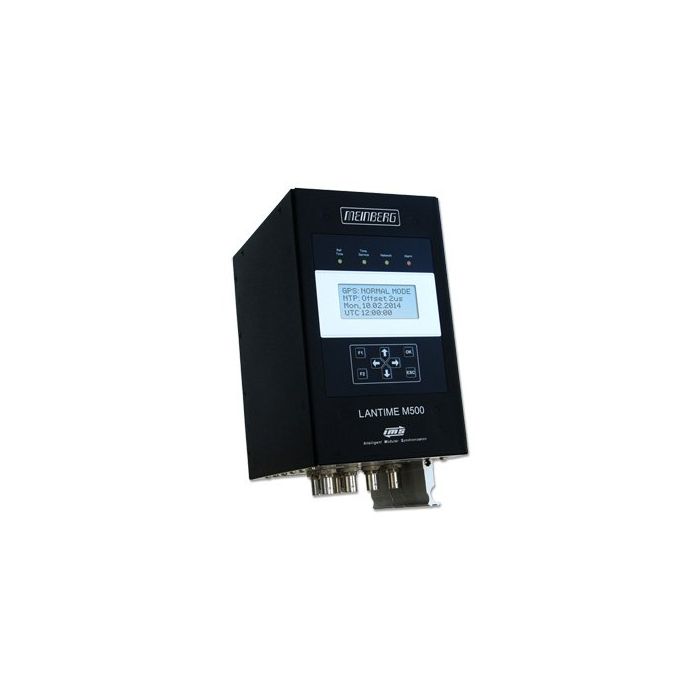

main product photo
Modular Time- and Frequency Synchronisation System for Industrial Applications in DIN Rail Chassis
The full-featured DIN railmount package has one power supply slot, a clock module slot, a CPU slot and two slots for additional input and output modules. Both, wide range AC and a 20-60 V DC power supply model are available.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Manual URL https://www.meinbergglobal.com/download/docs/manuals/english/ltos_7-02.pdf
Technical Support Meinberg offers free lifetime technical support via telephone or e-mail.
Relative Humidity Max. 85%
Further information Rail Mount NTP Time Server for large Networks
With up to 6,000 NTP requests per second, the system is able to provide time for hundreds and thousands of NTP clients. The LANTIME module supports the following protocols: IPv4, IPv6, NTP / SNTP (v2, v3, v4), HTTP (S), SSH, Telnet, SNMP (v1, v2, v3), FTP, SFTP, DHCP/DHCPv6. For each system, up to 99 logical network interfaces are available (99 IPv4 and 99 IPv6 addresses).

Scalable NTP Time Server System
All modules are hot-plug capable and the modules can be configured via the central web interface (from the CPU module). Almost infinite number of combinations of input and output modules are available to meet almost any Synchronisation task. Because of simple extension by upgrading the system with new modules the scalability of the M500 system is ensured.

Slots for Input Signals:
IMS-MRI: Standard reference inputs
IMS-ESI: Extended reference inputs

Both of these reference input interfaces may also be used as I / O slot.

Front Panel
The front panel of LANTIME M500 integrates the familiar LC-Display with 4x16 characters and the well known LANTIME menu panel with 4 directional and 4 function buttons. This allows for a simple and fast on-site configuration of the main parameters. Hundreds of configuration options for the LANTIME CPU and the IMS input and output modules can be changed using the powerful web interface.
RoHS Yes
Display LC-Display, 4 x 16 characters
Reference Options
  • GPS - Global Positioning System
  • GLONASS - Russian GNSS
  • GALILEO - European GNSS
  • BeiDou - Chinese GNSS
  • PZF - German DCF77 longwave radio signal
  • PTP/IEEE1588 - Precision Time Protocol
  • NTP - Network Time Protocol
  • SyncE - Synchronous Ethernet
  • Timecodes - IRIG/AFNOR timecodes (AM/DCLS)
  • PPS -Pulse Per Second
  • 10MHz - 10MHz reference frequency
  • 2.048kHz - 2.048kHz reference frequency
  • E1/T1 - Telecom Synchronisation Input with full SSM/BOC support
Control elements Eight push buttons to set up basic network parameters and to change system settings.
Status info Four bicolour LEDs showing status of: reference time, time service, network, alarm
Frequency Outputs Accuracy depends on oscillator (standard: OCXO-SQ)
Accuracy of Pulse Outputs < ±100ns (TCXO, OCXO LQ) | < ±50ns (OCXO SQ, OCXO MQ, OCXO HQ, OCXO DHQ, Rubidium)
Network Interface
  • CPU-C05F1 : 1 x 10/100 MBit, RJ45
  • CPU-C15G2 : 1 x 100/1000BASE-T RJ45, 1 x 1000BASE-T SFP
  • Network Expansion - LNE Options: Up to 8 additional network interfaces (GbE Gigabit Support) with 10/100/1000 MBit RJ45 connector or 1000BASE-T SFP (Multimode / Singlemode).
Universal Serial Bus (USB) Ports
  • 1x USB Port in front panel
  • install firmware upgrades
  • backup and restore configuration files
  • copy security keys
  • lock/unlock front keys
Power supply - Maximum Power Range
  • AD10: 90-265 V AC, 47-63 Hz / 90-250 V DC
  • DC20: 20–60 V DC
  • DC10: 10–36 V DC
CPU
  • CPU-C15G2 | Intel® Atom™ Processor E Series (2 Cores, 1.33GHz, TDP 3W) | Main Memory: onboard 2 GB | Cache Memory: 1MB 2nd Level Cache | Flash Disk: 4 GB
    CPU-C05F1 | AMD Geode™ LX 800 (500 MHz, 128 KB L2 cache, 3.6 W) | Main Memory: onboard 256 MByte | Flashdisk: 1 GB"
Operating System of the SBC GNU/Linux 4.x
Network protocols OSI Layer 4 (transport layer) TCP, UDP
Network protocols OSI Layer 7 (application layer) TELNET, FTP, SSH (incl. SFTP, SCP), HTTP, HTTPS, SYSLOG, SNMP
Internet Protocol (IP) IP v4, IP v6
Network Autoconfiguration Support
  • IPv4: Dynamic Host Configuration Protocol - DHCP (RFC 2131)
  • IPv6: Dynamic Host Configuration Protocol - DHCPv6 (RFC 3315) and Autoconfiguration Networking - AUTOCONF (RFC 2462)
Network Time Protocol (NTP)
  • NTP v2 (RFC 1119), NTP v3 (RFC 1305), NTP v4 (RFC 5905)
  • SNTP v3 (RFC 1769), SNTP v4 (RFC 4330)
  • MD5 / SHA-1 Authentication and Autokey Key Management
Parallel Redundancy Protocol (PRP) PRP (IEC 62439-3)
Time Protocol (TIME) Time Protocol (RFC 868)
Daytime Protocol (DAYTIME) Daytime Protocol (RFC 867)
IEC 61850 Synchronisation of IEC 61850 compliant devices by using SNTP
Hypertext Transfer Protocol (HTTP) HTTP/HTTPS (RC 2616)
Secure Shell (SSH) SSH v1.3, SSH v1.5, SSH v2 (OpenSSH)
Telnet Telnet (RFC 854-RFC 861)
Simple Network Management Protocol (SNMP) SNMPv1 (RFC 1157), SNMPv2c (RFC 1901-1908), SNMP v3 (RFC 3411-3418)
Scope of supply Product documentation and software on USB storage device.
Firmware Updates Firmware is field-upgradeable, updates can be installed directly at the unit or via a remote network connection. Software updates are provided free of charge, for the lifetime of your Meinberg product.
WEEE status of the product B2B. Return to manufacturer
Key Features
  • Optimized space usage
  • Synchronisation of NTP and SNTP compatible clients
  • Web-based status and configuration interface and console-based graphical configuration utility
  • IMS - Intelligent Modular System platform
  • Up to 2 PTP (IEEE 1588-2008) modules
  • Hot Plug
  • Arbitrary combinations of modules
  • Meinberg's LANTIME time server is available with a variety of additional output options: IRIG Time Code, frequency synthesizer and programmable pulse outputs illustrate some of the many expansion options for your NTP server
  • Up to 8 additional LAN ports
Operating Temperature 0 ... 50°C / 32 ... 122°F
More Information
Attribute Value
Data Sheet Click here to view
