Meinberg
Output module for direct generation of 10 MHz sine-wave signals

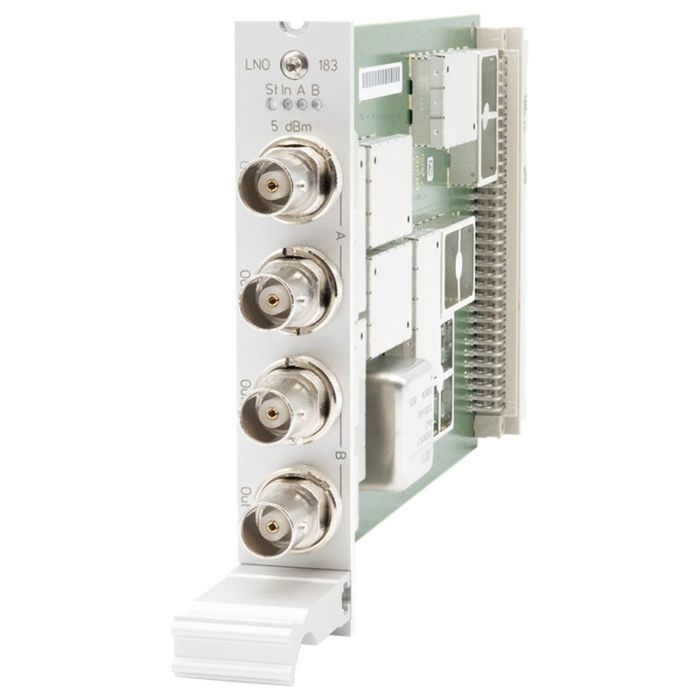

An Innovative Solution for 10 MHz Sine-Wave Generation with Minimal Phase Noise Meinberg's IMS-LNO183 is a plug-in module for Meinberg's trusted line of IMS modular time server solutions.
This 10 MHz sine-wave generator card provides extremely stable sine-wave signals with minimal phase noise across its four outputs. Such stability is essential in high-spec applications such as wide-range telecommunications networks, aerospace, and metrology, where an accurate 10 MHz sine-wave reference is essential for avoiding disruptive harmonic interference over long-distance distribution.
The module features a high-grade on-board oscillator that is independently locked to the 10 MHz pulse-wave reference signal of the IMS reference system, which is essential for maintaining the phase stability of the output signal.
The IMS-LNO183 has integrated output signal monitoring that allows the host IMS LANTIME system to monitor the status of the module, its outputs, and the phase-locked loop disciplining the on-board oscillator, ensuring reliable and useful management.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Nominal Output Frequency | 10 MHz |
| Power Consumption |
(Maximum)
2.5 W to 4.0 W |
| Reference Input Return Loss | 30 dB (typical) |
| Output Return Loss |
33 dB (typical, 5 dBm models) 19 dB (typical, 8 dBm, 10 dBm, 12 dBm models) |
| Output Crosstalk Attenuation | 73 dB (typical) |
| Harmonic Suppression | Minimum 55 dB, typically 60 dB |
| Meinberg Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Output Power |
5 dBm models: 4 dBm – 6 dBm 8 dBm models: 7 dBm – 9 dBm 10 dBm models: 9 dBm – 11 dBm 12 dBm models: 11 dBm – 13 dBm |
| Reference Input Level | 2 dBm – 13 dBm |
| Compatible Slots | MRI (Multi-Reference Interface), ESI (Extended Standard Interface), I/O |
| Storage Temperature | -20 °C to 70 °C (-4 °F to 158 °F) |
| Relative Humidity | Max. 95 % at 40 °C (104 °F), non-condensing |
| Card Type | Eurocard format |
| Compatible Base Chassis Types | M500, M1000, M1000S, M2000S, M3000, M3000S, M4000 |
| Settling Time of OCXO to Reference | 30 s – 60 s |
| Current Draw (Maximum) | 0.5 A to 0.8 A |
| LTOS Requirements | Requires LTOS Version 7.10.004 for full feature support |
| Technical Support | Free lifetime support via telephone and email, including firmware updates. |
| Signal Level Options | 5 dBm, 8 dBm, 10 dBm, 12 dBm assuming 50 Ω load |
| Output Signal | 10 MHz sine-wave output |
| Connector Type | Bayonet Neill-Concelman (BNC) connector |
| Warranty | Three-year warranty, extendable upon request |
| Firmware Updates | Firmware is field-upgradeable; updates can be installed directly from the unit or via a remote network connection. Software updates are provided free of charge for the lifetime of your Meinberg product. |
| WEEE status of the product | The purchase of this product is considered to be a “B2B” transaction (non-household product) for the purposes of the European Union Waste of Electrical and Electronic Equipment Directive; the product falls under Category 6, “Small IT and Telecommunications Equipment”. For disposal, it must be returned to the manufacturer to ensure WEEE compliance. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will cover the costs for the waste disposal itself. |
| BNC Connectors | Yes |
| Cable type | Coaxial cable, shielded |
| Phase Noise Performance |
-105 dBc/Hz at 1 Hz -135 dBc/Hz at 10 Hz -155 dBc/Hz at 100 Hz -160 dBc/Hz at 1 kHz -165 dBc/Hz at >= 10 kHz |
| Operating Voltage | 5 V |
| RoHS | The product is fully RoHS-compliant. |
