Meinberg
Audio/Video-Sync Generator

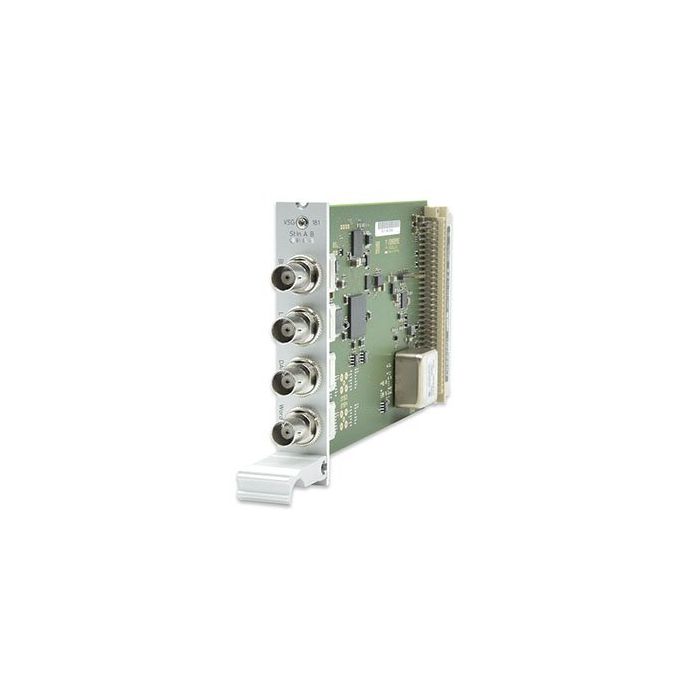

The IMS-VSG181 is used as a video signal reference for studio equipment and provides the generated signals at four BNC outputs. These are Bi-Level Sync (Black Burst) / Tri-Level-Sync, Longitudinal Time and Control Code (LTC), Digital Audio Out (DARS), and Word Clock.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Manual URL | https://www.meinbergglobal.com/download/docs/manuals/english/vsg181.pdf |
| Relative Humidity | Max. 85% |
| Further information |
Functionality
The VSG181 is Synchronised by an external 10 MHz signal, 1PPS and a time telegram, which provides the connected reference receiver. These signals significantly determine the accuracy of the output signals. The generated video signals, in different formats, have a phase reference to the 1PPS. In order to be able to provide high-precision output signals during the switchover of the RSC (IMS systems with redundant receivers), the VSG181 has its own oscillator. |
| RoHS | Yes |
| Status info |
St: Status of VSG181
|
| Electrical Connectors | 96-pin VG-rail DIN 41612 |
| WEEE status of the product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
| BNC Connectors |
Out 1:
Black Burst Output Output signal: PAL, NTSC Black Burst with VITC support Signal level: 300 mVpp into 75 Ohm (unbalanced) PAL (SMPTE259M/ITU-R BT.470-6) NTSC (SMPTE170M/ITU-R BT.470-7) VITC (SMPTE12M-1/SMPTE ST309M) Tri-Level Sync: 720p50 Hz (SMPTE296M3) 1080i25 Hz (SMPTE274M6) 720p59,94 Hz (SMPTE296M1) 1080i29,97 Hz (SMPTE274M7) Out 2: LTC output Signal: LTC (25 fps, 23,98 fps, 29,97 fps, 29,97 fps Drop Frame) Signal level: TTL, 2.5 Vpp (MARK/SPACE) into 75 Ohm Out 3: DARS output Output signal: DARS Signal level: TTL, 2.5 Vpp into 75 Ohm Signal type: base frequencies - 44.1 kHz and 48 kHz Out 4: Word Clock output Output signal: Word Clock Signal level: TTL, 2,5 Vpp into 75 Ohm Frequency range: 24 Hz - 12,288 MHz Base frequencies: 44.1 kHz and 48 kHz Scale factor: 0.125, 0.25, 0.5, 1, 2, 4, 8, 16, 32, 64, 128, 256 |
| Current Consumption | 5 V ± 5%, 250 mA |
| Key Features |
Four BNC outputs with configurable video and audio signals:
|
| Operating Temperature | 1 ... 50°C / 32 ... 122°F |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
