Meinberg

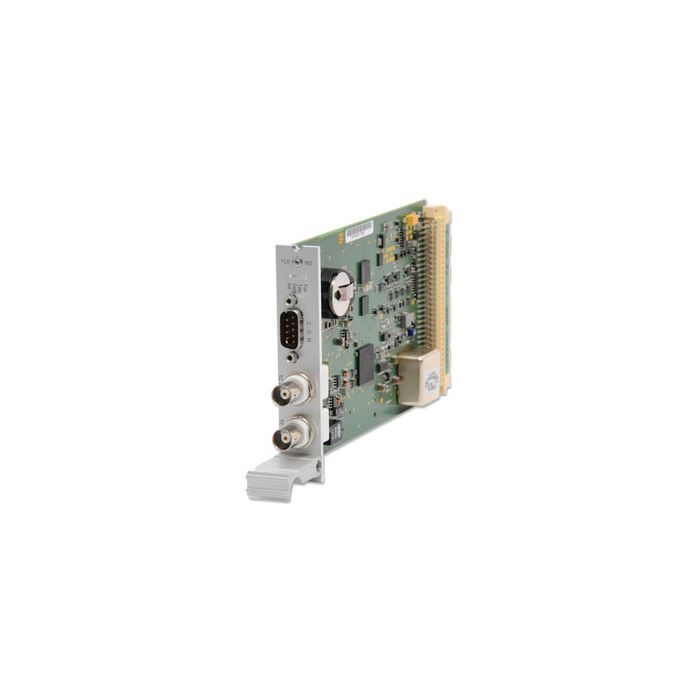

IRIG Time Code Receiver and Generator Module
The frequency locking of the master oscillator to the time code system enables this module to generate fixed and programmable standard frequencies with high accuracy and stability. Various oscillator options allow the cost efficient implementation of different requirements concerning the accuracy of the outputs.
The generator of the IMS-TCR module generates pulses per second and per minute and per hour. Four programmable outputs are also available. The pulses are Synchronised to UTC-second.
The Meinberg MRS concept supports setting up a prioritized list of input sources that are used to Synchronise the internal hardware clock of the IMS-TCR and then generate a large number of different output signals used by IMS I/O compatible cards to provide a user-defined selection of Synchronisation output signals by adding BPE, CPE or other IMS modules.
The generator of the IMS-TCR module generates pulses per second and per minute and per hour. Four programmable outputs are also available. The pulses are Synchronised to UTC-second.
The Meinberg MRS concept supports setting up a prioritized list of input sources that are used to Synchronise the internal hardware clock of the IMS-TCR and then generate a large number of different output signals used by IMS I/O compatible cards to provide a user-defined selection of Synchronisation output signals by adding BPE, CPE or other IMS modules.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Manual URL | Not available yet |
| Relative Humidity | Max. 85% |
| Further information |
The module TCR180 has been designed to receive and to generate IRIG-A/B/G, IEEE 1344, IEEE C37.118 or AFNOR NF S87-500 time codes.
It is used in applications like data acquisition, standalone computer time Synchronisation (for systems without a network connection or higher accuracy requirements) or as an IRIG converter device. Receiver: The module provides two input channels for decoding of modulated and unmodulated time codes in IRIG-A/B/G, IEEE 1344, IEEE C37.118 or AFNOR NF S87-500 format. The receiver's automatic gain control (AGC) allows the reception of modulated IRIG signals within an amplitude range from 600 mVpp to 8 Vpp. In addition, the TCR180 provides an optocoupler input for decoding unmodulated codes with TTL- or RS-422 level for example. Generator: The board TCR180 can generate time codes in IRIG-A/B/G, IEEE 1344, IEEE C37.118 or AFNOR NF S87-500 format. These signals are provided as modulated (3 Vpp/1 Vpp into 50 ohm) and unmodulated (TTL into 50 ohm) time codes. The independent configuration of the time code and its offset to UTC of the receiver and the generator allows the use of TCR180 for time code conversion applications. |
| RoHS | Yes |
| Status info |
Status info by 4 LED light indicators (2mm light pipes)
|
| Frequency Outputs | Frequency synthesizer 1/8 Hz up to 10 MHz (TTL, sine 1,5Vrms) |
| Pulse outputs | Four programmable pulse outputs, TTL level |
| Data format of interfaces |
Baud rate: 300 Bd...115200 Bd
Data format: 7E2, 8N1, 8N2, 8E1, 7N2, 7E1, 801 Time telegram: Meinberg Standard-Telegram , SAT, Uni Erlangen (NTP), SPA, RACAL, COMPUTIME, ION or Capture-Telegramm |
| Generated Time Codes |
IRIG A002: 1000pps, DCLS signal, no carrier, BCD time of year
IRIG A132: 1000pps, AM sine wave signal, 10 kHz carrier, BCD time of year IRIG A003: 1000pps, DCLS signal, no carrier, BCD time of year, SBS time of day IRIG A133: 1000pps, AM sine wave signal, 10kHz carrier, BCD time of year, SBS time of day IRIG A006: 1000pps, DCLS signal, no carrier, BCD time of year, BCD year IRIG A136: 1000pps, AM sine wave signal, 10kHz carrier, BCD time of year, BCD year IRIG A007: 1000pps, DCLS signal, no carrier, BCD time of year, BCD year, SBS time-of-day IRIG A137: 1000pps, AM sine wave signal, 10kHz carrier, BCD time of year, BCD year, SBS time-of-day IRIG B002: 100pps, DCLS signal, no carrier, BCD time of year IRIG B122: 100pps, AM sine wave signal, 1 kHz carrier, BCD time of year IRIG B003: 100pps, DCLS signal, no carrier, BCD time of year, SBS time of day IRIG B123: 100pps, AM sine wave signal, 1kHz carrier, BCD time of year, SBS time of day IRIG B006: 100 pps, DCLS Signal, no carrier, BCD time of year, BCD year IRIG B126: 100 pps, AM sine wave signal, 1 kHz carrier frequency, BCD time of year, BCD year IRIG B007: 100 pps, DCLS Signal, no carrier, BCD time of year, BCD year, SBS time-of-day IRIG B127: 100 pps, AM sine wave signal, 1 kHz carrier frequency, BCD time of year, BCD year, SBS time-of-day IRIG G002: 10000pps, DCLS Signal, no carrier, BCD time of year IRIG G142: 10000pps, AM sine wave signal, 100 kHz carrier frequency, BCD time of year IRIG G006: 10000pps, DCLS Signal, no carrier, BCD time of year, BCD year IRIG G146: 10000pps, AM sine wave signal, 100 kHz carrier frequency, BCD time of year, BCD year IEEE1344: Code according to IEEE1344-1995, 100pps, AM sine wave signal, 1kHz carrier, BCD time of year, SBS time of day, IEEE1344 expansion for date, time zone, daylight saving and leap second in Control Functions Segment C37.118: Like IEEE1344 - with turned sign bit for UTC-Offset AFNOR: Code according to NFS-87500, 100pps, AM sine wave signal, 1kHz carrier, BCD time of year, complete date, SBS time of day |
| Electrical Connectors | 96-pin VG-rail DIN 41612 |
| WEEE status of the product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
| Available Output Signals |
Modulated IRIG-A/B/G, IEEE 1344, IEEE C37.118 or AFNOR NF S87-500 signal, 3 Vpp (high) and 1 Vpp (low) into 50 ohm.
Unmodulated (DC Level Shift) IRIG-A/B/G, IEEE 1344, IEEE C37.118 or AFNOR NF S87-500 signal, TTL into 50 ohm, active high or active low selectable by jumper. (The generated signals are available as outputs via additional IMS modules) |
| Accuracy Free run | ±1·E-8 if the decoder was synchronous for at least 1 h |
| IRIG Time Code Input | IRIG - A002/A132, A003/A133, A006/A136, A007/A137, B002/B122, B003/B123, B006/B126, B007/B127, G002/G142, G006/G146, IEEE 1344, AFNOR NFS 87-500 and IEEE C37.118 (other codes on request) |
| Precision of timebase |
< 500 nsec compared to IRIG reference marker
Required accuracy of time code source: +/- 100ppm |
| Backup Battery Type |
CR2032 - button cell lithium battery
When main power supply fails, hardware clock runs free on quartz basis, almanac data is stored in RAM Life time of lithium battery min. 10 years |
| Current Consumption | +5 V 1,1 A to 1,4 A (depends on oscillator option) |
| Input Signal |
TC AM In (BNC female connector)
Modulated IRIG-A/B/G, IEEE 1344, IEEE C37.118 or AFNOR NF S87-500 signal, input insulated by transformer, input impedance 50 ohm, 600 ohm or 5 kohm selectable by jumper. TC DCLS In (BNC female connector) Unmodulated (DC level shift) IRIG-A/B/G, IEEE 1344, IEEE C37.118 or AFNOR NF S87-500 signal, input insulated by photocoupler. |
| Key Features |
|
| Operating Temperature | 0 ... 50°C / 32 ... 122°F |
| Interface | Single serial RS-232 interface |
