IMS-PIO
IMS-PIO
Meinberg

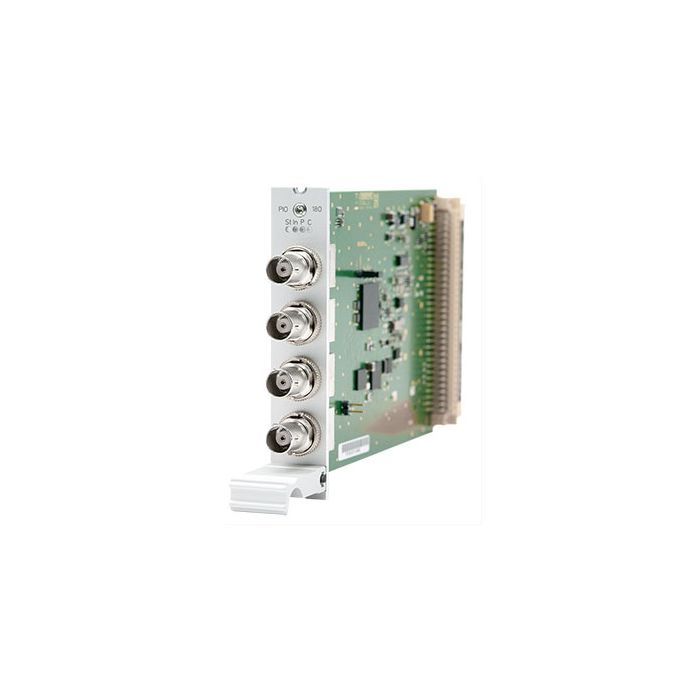

Versatile I/O module for output and measurement of PPS and 10 MHz signals
The four I/O ports of the IMS module PIO180 (PIO=Programmable Input/Output) can be used as inputs as well as outputs. Primarily, the module was developed to perform measurements of e.g. PPS signals of external systems against the internal reference time.
Functionality
The offset from the external reference against the high-precision time of the internal oscillator is measured with an accuracy of 5ns (measurement resolution 1ns). With the SyncMon in the LANTIME web interface these measurements can be logged and analysed.
If the ports of the PIO180 are to be used as outputs, the signal direction can be set to "Output" in the web GUI of the LANTIME.
Functionality
The offset from the external reference against the high-precision time of the internal oscillator is measured with an accuracy of 5ns (measurement resolution 1ns). With the SyncMon in the LANTIME web interface these measurements can be logged and analysed.
If the ports of the PIO180 are to be used as outputs, the signal direction can be set to "Output" in the web GUI of the LANTIME.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Manual URL | https://www.meinbergglobal.com/download/docs/manuals/english/ims-pio.pdf |
| Relative Humidity | Max. 85% |
| Further information |
Compatibility
The PIO180 is an IMS module which is compatible with all systems of the IMS family. It can also be used on any slot (MRI, ESI, I/O). For example, it is possible to build up a central measurement system with a LANTIME M3000, which can log and analyse the accuracy of up to 40 PPS signals of external systems with the help of the SyncMon, which acts as a central measurement system with a PIO180 module. Application Areas Proof of signal accuracy for compliance with standards e.g. Directive 2014/65/EU on markets in financial instruments MiFID 2 Quality assurance Checking the correct Synchronisation of external systems Highly accurate measurement of the time offset with an accuracy of 5ns (measurement resolution 1ns) |
| RoHS | Yes |
| Status info |
LED St: PIO status
|
| Power supply - Maximum Power Range | +5V DC |
| Electrical Connectors | 96-pin VG-rail DIN 41612 |
| WEEE status of the product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
| BNC Connectors |
4 x BNC female connectors
Input or output signal, individually switchable via web interface Signal option: PPS or 10 MHz (selectable via jumper) Signal level: TTL Impedance: 50 Ω Measuring accuracy: 5 ns (1 ns resolution) |
| Key Features |
|
| Operating Temperature | 0 ... 50°C / 32 ... 122°F |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
