Meinberg

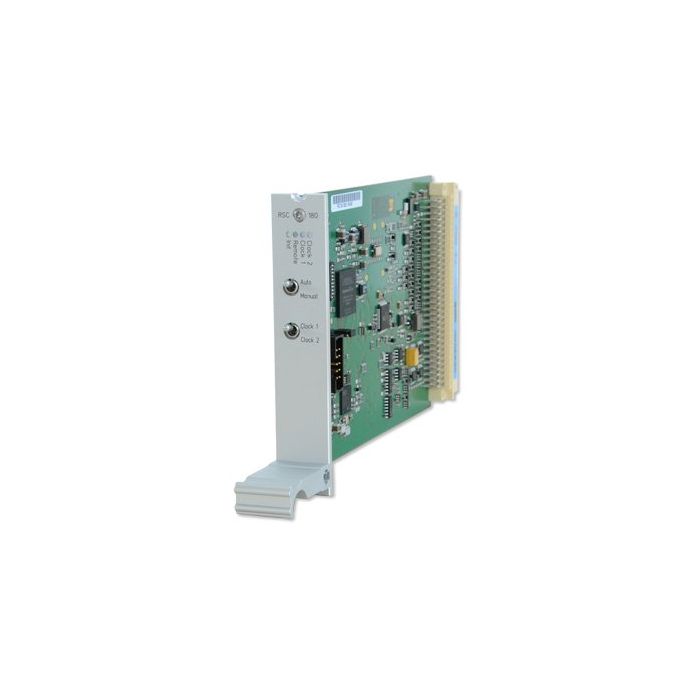

Switch Module for Seamless Switchover of Backplane Signals
This module is required for redundant clock module configurations and switches the Synchronisation signals from the selected clock module to the IMS backplane (most I/O modules use these backplane signals to generate their output signals). A new feature offers a phase neutral switchover for LIU output cards, avoiding phase jumps for telecommunication signals (E1/T1). The RSC can be configured to automatically switch between the two clock modules based on their status but it is also possible to manually select the clock module using the selection switches.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Manual URL | Not available yet |
| Relative Humidity | Max. 85% |
| Further information | The RSC- Redundant Switch Control card controls the switchover of the reference clock in redundant systems with two receiver units. The RSC is used to switchover the pulse and frequency outputs and the serial interfaces between the available receivers. The controls of the module allow the selection of different modes in which the RSC operates. The status LEDs indicate which receiver is selected as a master clock and the current operating state of the switching module. |
| RoHS | Yes |
| Status info |
Four Status LEDs
|
| WEEE status of the product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
| Key Features |
|
| Operating Temperature | 0 ... 50°C / 32 ... 122°F |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
