IPP-5003
IPP-5003
Innovative Power Products

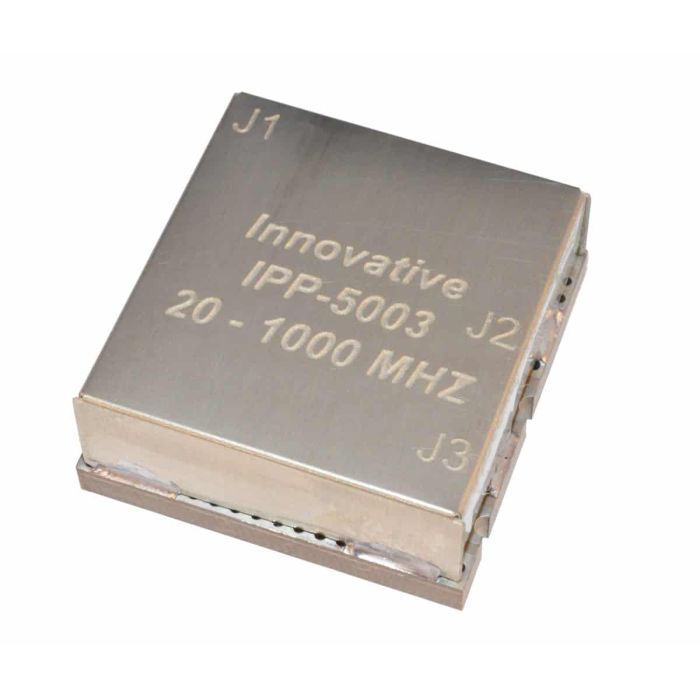

Balun ranging from 20 to 1000 MHz
Baluns are a form of 3-port transformer that converts between an unbalanced signal (one signal referenced to ground) and a balanced signal (two signals referenced to each other). The balanced signals are equal in amplitude and have a 180-degree phase shift between them. A balun can take many forms and may include devices that also transform impedances. Transformers are used to connect transmission lines of differing impedances.
IPP's baluns are suitable for push-pull amplifiers, antenna drivers, amateur radio, commercial and military applications. IPP baluns can be customised for your individual projects - ask a member of our specialist RF team for details on 0330 313 3220. You can also request a sample by speaking to our team - please note, not all products are available for sampling.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Phase Balance Degrees | 6.0000 |
| Insertion Loss Max dB | 0.5 |
| Power | 100 |
| Package | SMD |
| Amplitude Balance (dB) | 0.45 |
| Type | Balun |
| View PCB Mounting Footprint | https://innovativepp.com/wp-content/drawings/ipp-5003_pcb_mounting_footprint.dxf |
| Impedance (Ohms) J1 | 50 |
| Impedance (Ohms) J2, J3 | 25 |
| Package Size | 1.10 x 1.15" |
| VSWR Max | 1.30:1 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
