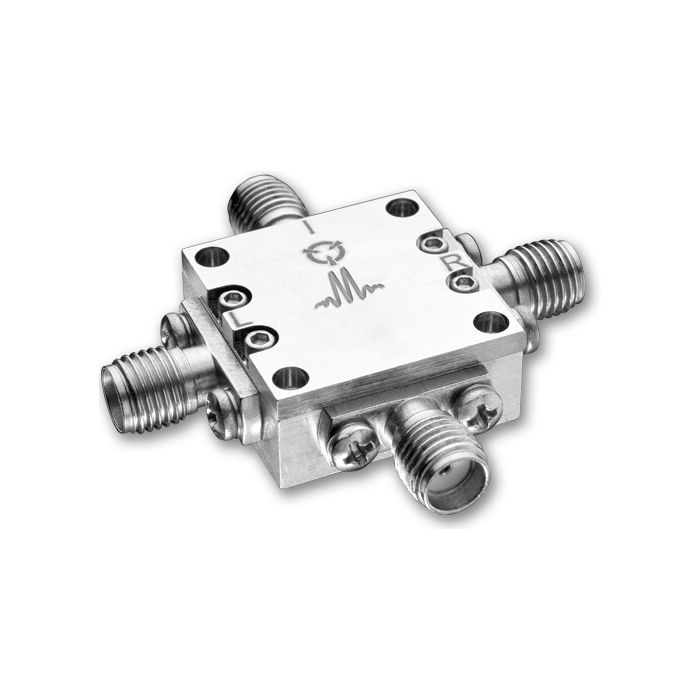

Image Reject Double-Balanced Mixer
An image reject mixer is a special mixer that will perform a single sided up or downconversion. In a single sided upconversion, one of the the sidebands (LO+RF or LO-RF) is suppressed by the mixer, whereas in a single sideband downconversion (or ‘image reject’ conversion), one of the sidebands is suppressed out of the IF port. Marki IR and SSB mixers offer excellent image suppression and sideband rejection across broad bandwidths.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| IF (GHz) | 0.05 to 0.09 |
| LO Drive (dBm) | +10 to +16 |
| Conversion Loss (dB) | 5.5 |
| Isolations L-R (dB) | 30 |
| Isolations L-I (dB) | 25 |
| RF/LO (GHz) Low | 4.5 |
| RF/LO (GHz) High | 9 |
| Image Rejection (dB) | 23 |
| Product Type | Legacy IQ/IR/SSB |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
