MMIQ-4067L
MMIQ-4067L
Marki Microwave
Passive GaAs MMIC IQ Mixer
The MMIQ-4067L is a low LO drive, passive GaAs millimeter wave MMIC IQ mixer. This is an ultra-broadband mixer spanning 40 to 67 GHz on the RF and LO ports with an IF from DC to 20 GHz. Up to 25 dB of image rejection is available due to the excellent phase and amplitude balance of its on-chip LO quadrature hybrid.

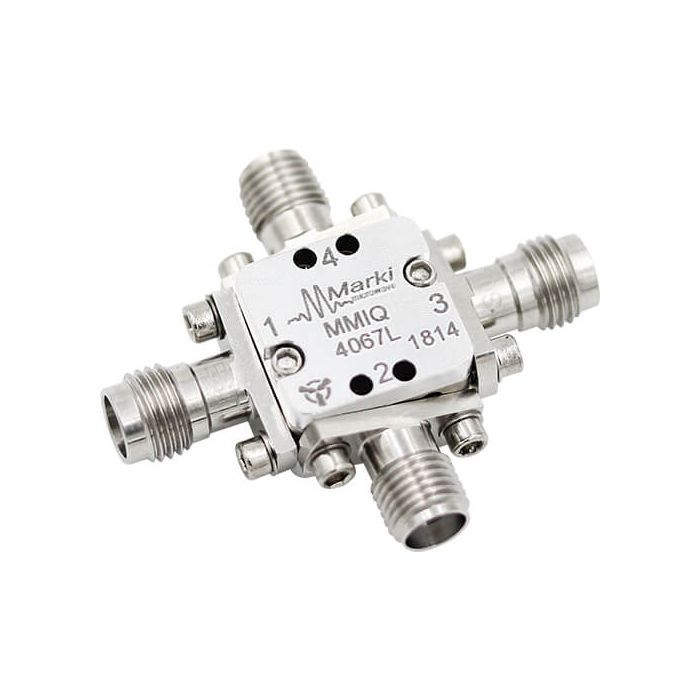

This product is available as a Connectorised module. Contact factory for information regarding wire bondable die.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Applications |
|
| IF (GHz) | DC to 20 |
| LO Drive Min (dBm) | +11 to +15 |
| Conversion Loss (dB) | 9 |
| Isolations L-R (dB) | 33 |
| Isolations L-I (dB) | 40 |
| RF/LO (GHz) Low | |
| RF/LO (GHz) High | |
| Image Rejection (dB) | 35 |
| Product Type | MMIC Bare Die/Modules |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
