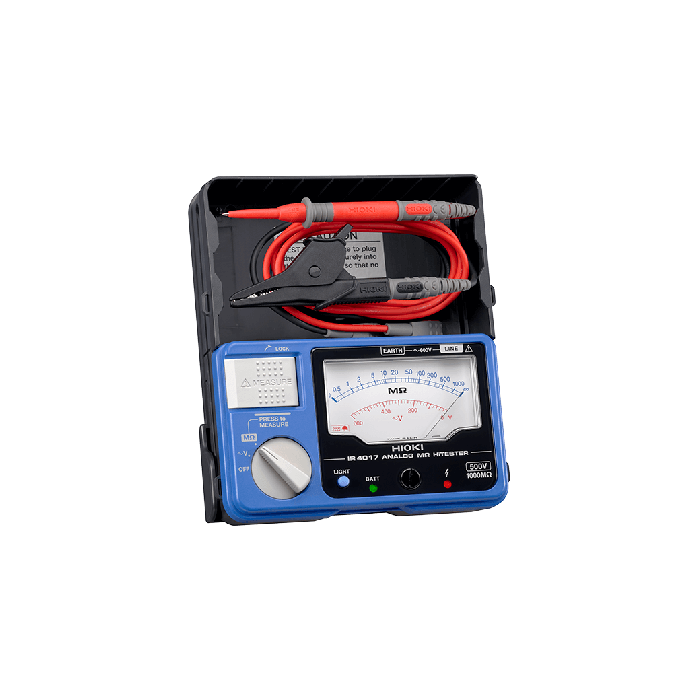

IR4017-20
IR4017-20
Hioki
Analogue HiTester
This product is available in 5-7 weeks
Reliable and Efficient Insulation Testing in the Field
Hioki insulation testers or megohmmeters feature all-in-one designs including built-in rugged cases and test lead storage compartments. The IR4017-20 is a single-range, 500 V/1000 MΩ analogue insulation resistance tester with efficient functions and features to help shorten work time associated with field insulation testing.
CAT III 600 V
Key Features
- Single range testing voltage of 500 V
- Test insulation resistance up to 1000 MΩ
- Built tough to withstand a 1-meter drop onto a concrete floor
- Bright LED luminous scale
- Check for live circuits and battery status
- Integrated hard case for quick and easy storage without disconnecting the leads
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
| Attribute | Value |
|---|---|
| Power Supply | LR6 (AA) alkaline batteries ×4, Continuous use: 20 hours (no load) |
| Included Accessories | Test Lead L9787 ×1, LR6 (AA) alkaline batteries ×4, Instruction manual ×1, Shoulder strap ×1 |
| Other Functions | Bright LED luminous scale, Drop proof (on concrete, 1 m/1 time), Battery check, Live circuit check, Auto discharge |
| Rated Output Voltage | 500 V DC |
| AC Voltage range |
0 to 600 V (50/60 Hz), ±5 % of maximum scale value accuracy, |
| Accuracy 1st effective measuring range MΩ (±4% rdg.) | ±2 % of scale length, 1 M to 500 MΩ |
| Lower Limit Resistance | 0.5 MΩ (measurement resistance value to maintain testing voltage) |
| Overload Protection | 600 V AC (10 sec.) |
| Effective Maximum Indicated Value | 1000 MΩ |
