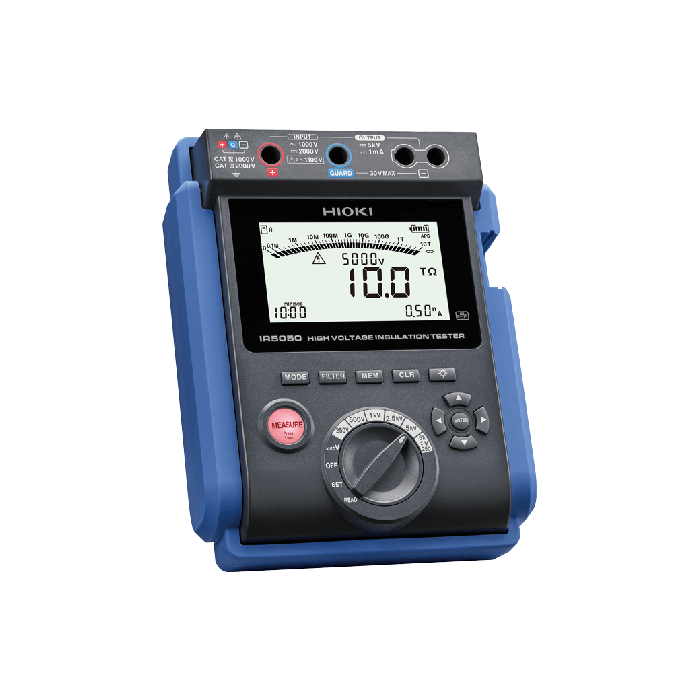

High Voltage Insulation Tester

Maximum 5kV Test Voltage - Up to 10 TΩ of Insulation Resistance Testing.

The IR5050 is a compact, lightweight, high-voltage insulation resistance tester capable of outputting up to 5 kV. Its unique measurement technology enables stable measurements of up to 10 TΩ.

Ideal for high-voltage insulation resistance testing

Best suited for high-voltage insulation resistance testing, the IR5050 is equipped with advanced measurement technology that guarantees stable readings across a range of applications, including high-voltage cables, transformers, and motors. It also features an intuitive rotary knob for straightforward operation, enhancing its versatility and user-friendliness for diverse industrial uses.

Advanced insulation diagnostic features

The IR5050 offers specialized insulation diagnostic functions such as step and ramp voltage testing. It automatically displays results in indices like PI (Polarization Index), DAR (Dielectric Absorption Ratio), and DD (Dielectric Discharge), streamlining the diagnostic process.

Streamlined data management and reporting

Enhancing efficiency, the IR5050 comes with data memory, and options for wireless and USB connectivity. It facilitates real-time graph trending on mobile devices and enables quick report generation, simplifying data handling and documentation.

Key Features

  • Measure insulation of high-voltage equipment (such as transformers, cables, and motors)
  • Wide testing voltage range, up to 5000 V from 250 V DC
  • Wide measurement insulation range, up to 10 TΩ
  • Automatically calculated and displayed insulation diagnostics (PI, DAR, and DD)
  • Data memory functions increase your work efficiency by eliminating human errors from manual reporting.
  • Selectable Interface Compatibility: Offers both wireless and USB connectivity options.
  • Compact and lightweight, equipped with an IP65-rated carrying case
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply

LR6 (AA) alkaline battery × 8
HR6 (AA) nickel-metal hydride (NiMH) rechargeable battery × 8

Included Accessories Test lead L9850-01 ×1, Test lead L9850-02 ×1, Test lead L9850-03 ×1, Alligator clip L9851-01 ×1, Alligator clip L9851-02 ×1, Alligator clip L9851-03 ×1, Carrying Case C0212 ×1, LR6 Alkaline battery ×8, Instruction manual ×1, Operating precautions ×1
Other Functions Battery charge indicator, live circuit indicator, automatic power save, automatic discharge, backlight, buzzer, manual recording, logging recording, temperature and humidity input, elapsed time display, clock, filter, hardware filter, data-hold, system reset, USB communication (only when DT4900-01 is installed), wireless communication (only when Z3210 is installed), comparator, resistance gauge display, switching of insulation diagnosis function, breakdown cut-off.
Measurement Parameters

Insulation resistance
Leakage current
Voltage
Capacitance (DD function)

Dustproof and Waterproof

IP40 (with protector attached, excluding terminals)
IP65 (Carrying Case C0212)

Max Rated Voltage To Terminals 1000 V AC, 2000 V DC
Max Rated Voltage To Ground 1000 V (CAT IV), 600 V (CAT III)
Standards EN61010 (safety), EN61326 (EMC), IEC 61557-1, IEC 61557-2 (Insulation resistance tester)
Continuous Operating Time

Approx. 5 hours without Z3210 installed; approx. 4 hours with Z3210 installed and using wireless communication

*2:When using alkaline batteries, 5 kV generated, +/- terminals open, backlight off and comparator off

Operating Temperature and Humidity

-20°C to 50 °C (*1) (no condensation)

*1-20°C to 40°C (-4°F to 104°F), less than 80% RH , 40°C to 45°C (104°F to 113°F), less than 60% RH , 45°C to 50°C (113°F to 122°F), less than 50% RH

More Information
Attribute Value
Data Sheet Click here to view
