IR5051
IR5051
Hioki
Measure Solar PV System Insulation Resistance Safely and Accurately While Generating. Maximum 5kV Test Voltage - Up to 10 TΩ of Insulation Resistance Testing.
Measure Solar PV System Insulation Resistance Safely and Accurately While Generating

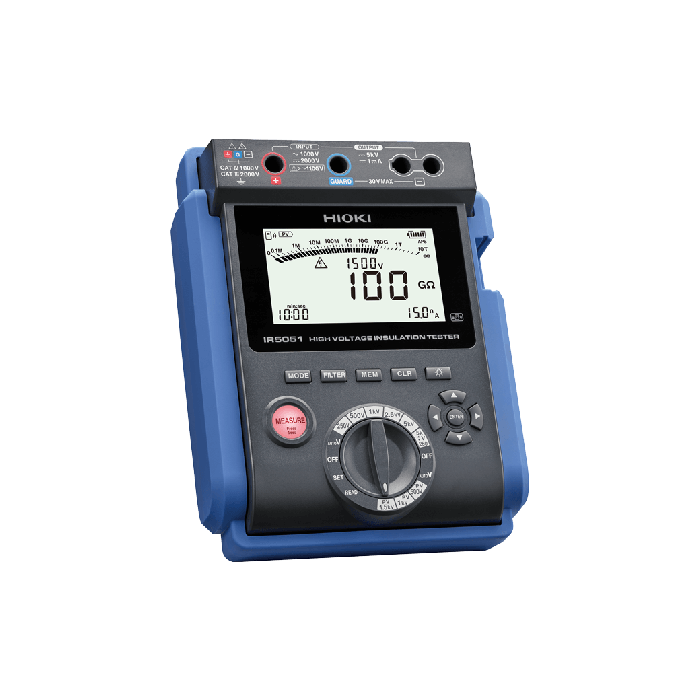

The IR5051 is a compact, lightweight, high-voltage insulation resistance tester capable of outputting up to 5 kV. Its unique measurement technology enables stable measurements of up to 10 TΩ. In addition, the IR5051 is capable of testing the insulation resistance of solar PV systems during power generation, and has a CAT III 2000 V safety rating to allow testing of 2000 V PV systems.
Dedicated Measurement Function
In addition to a normal insulation resistance measurement mode, the IR5051 also features a specialized mode for measuring PV insulation resistance.
Flexible Voltage Range
Effectively measures 1500 V solar PV systems and is prepared to accommodate systems up to 2000 V as technology advances.
Standards Compliance
Complies with IEC 62446-1 for Category 1 and Category 2 tests, ensuring robust safety and performance
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Standards | EN61010 (safety), EN61326 (EMC), IEC 61557-1, IEC 61557-2 (Insulation resistance tester) |
| Power Supply |
|
| Storage Temperature | -25°C to 65°C (-13°F to 149°F), less than 80% RH (no condensation) |
| Instrument Type |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
